PVC sheet is widely used as various decoration, advertisement, division plate, etc.The sheet long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof.Easy installation and low transportation cost.
Brand:
WONPLUSItem NO.:
SJZ80/156+YF1220Payment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment composition:

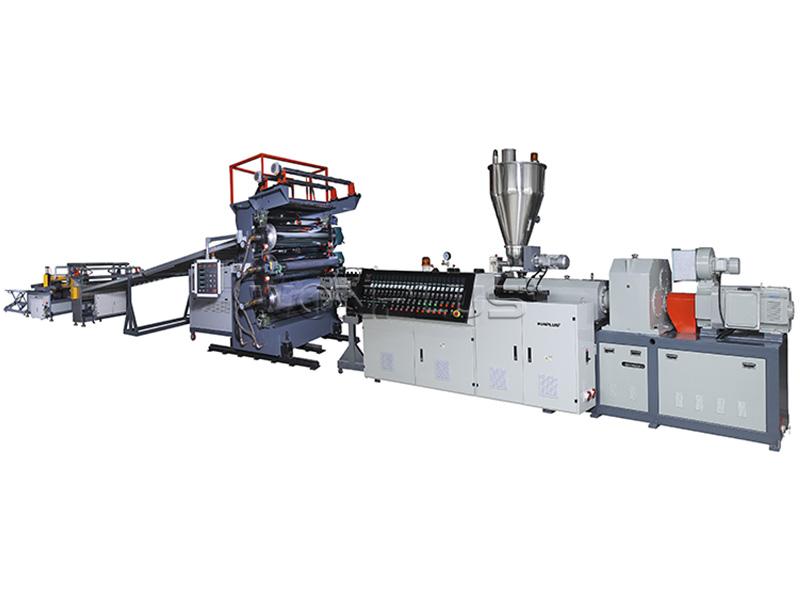

Conical Twin Screw Extruder + Sheet Mould + Three Roller Calender + Cooling Frame + Hauler + Cutter + Stacking Table
Feature:
● High output and stable running performance.
● PLC automatic control system and HMI touch screen control panel.
● Automatic mould temperature control system.
● Gravimetric dosing system.
● Mould : The special flow channel structure of sheet is adopted to make the material extruded evenly.
● Calibration Table : Adopt the pressure plate structure, the cylinder control, make the sheet size accuracy control simple. The design of the cooling system pipeline makes the cooling of the sheet more uniform and rapid shaping.
● Hauler and Cutter System: The roller type combined hauler is used to make the traction measurement and adjustment simple, the roller hauler and the Pneumatic cutter are controlled synchronously, and the cut of the plate is straight.
Technical Parameters:
|
PRODUCT NAME |
PVC Sheet Extrusion Machine |
||||
|
EXTRUDER |
SJZ-80/156 |
||||
|
MAIN MOTOR POWER |
55KW |
||||
|
PRODUCT WIDTH |
1220MM |
1560MM |
|||
|
PRODUCT THICKNESS |
2-18 MM |
2-12 MM |
|||
|
Downstream Equipment |
|||||
|
Three Roller Calender 1 set |
Cooling Frame 1 set |
Hauler 1 set |
Cutter 1 set |
Stacker 1 Set |
|
|
Inverter : ABB Roller pitch adjustment : hydraulic slide block type |
Length 4 M |
Hauler : 3KW *2 PCS |
Knife-in system : Pneumatic |
Length : 2.5M |
|
