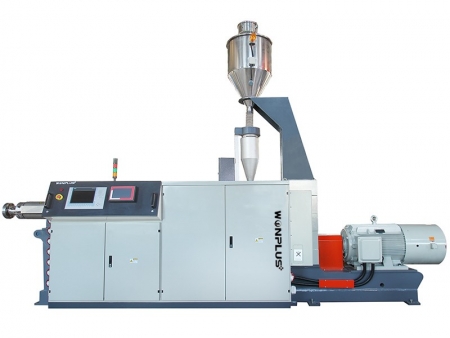

single screw extruder machine is specially designed for extruding plastic material such as : PE, PP, PPR PERT, etc. It is using different kind of mould and auxiliary machine, can produce different kinds of PE/PPR pipe, profile, panel.
Brand:
WONPLUSItem NO.:
SJPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysFeatures:
●It adopts advanced technology and results in high productivity and good plasticity, applicable to large range of plastic materials.
●PLC control system and HMI touch screen control panel, or Digital display control instrument
●Vertical type integrated gearbox.
●Optimized single screw material feeding system for stable production of PE / PPR particle.
●Barrel with air cooling
Technical Parameters:
|
MODEL |
SJ-45 |
SJ-60 |
SJ-75 |
SJ-90 |
SJ-120 |
SJ-150 |
||||
|
SCREW DIAMETER |
45 |
60 |
75 |
90 |
120 |
150 |
||||
|
POWER |
45 |
90 |
110 |
132 |
160 |
185 |
250 |
315 |
355 |
400 |
|
L/D |
36 |
36 |
38 |
36 |
38 |
36 |
38 |
36 |
38 |
36 |
|
SCREW SPEED |
187 |
187 |
185 |
150 |
187 |
136 |
107 |
107 |
94 |
94 |
|
DESIGNED OUTPUT |
100-150 |
250-300 |
400-450 |
450-550 |
600-700 |
700-800 |
900-1000 |
800-900 |
1000-1200 |
1300-1500 |
|
DIMENSION(L*W*H) |
2200*1440*1950 |
3000*1440*2000 |
3660*1550*2200 |
4230*1675*2200 |
5370*1860*2400 |
6630*1920*2450 |
||||
Extruder Details:
PVC sheet is widely used as various decoration, advertisement, division plate, etc.The sheet long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof.Easy installation and low transportation cost.
PVC hollow corrugated roof tile is widely used as factory roof, warehouse roof, agricultural market roof etc.The roofing tile has long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof, noise isolation.Easy installation and low transportation cost.
It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers. Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
PVC/WPC foamed skinning board has such characteristics as sound proof, sound absorb, heat proof, temperature preservation. It can be aging resistance, static electricity resistance.The product made by this machine group can also be used in making building template, toy building blocks use the board, tray package box, sleeper, outdoor floor, ,garden chair and other outdoor facilities, indicating plate, circulating box, roof beam and others.
PVC four outlet pipe extrusion line has the model of 16-32mm four outlet and 32-63mm four outlet, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
110-315mm HDPE pipe extrusion line is a middle size production line, the machine equipped with high efficiency screw extruder, which use 38:1 of screw L/D ratio, can reach high output with low energy consumption.
PVC two outlet pipe extrusion line has the model of 16-63mm,50-110mm and 90-160mm double out, which can produce Two pcs PVC pipes simultaneously. The PVC pipe is widely used to electric conduit, water discharge and so on. Two outlet PVC pipe extrusion line is a high efficient and output machine.
PVC multi layers co-extrusion pipe production line machine is used to produce three layers or four layers PVC pipe. Main extruder adopts two or three sets conical twin screw extruder, different capacity extruder for option.
