screw extruder machine
Products

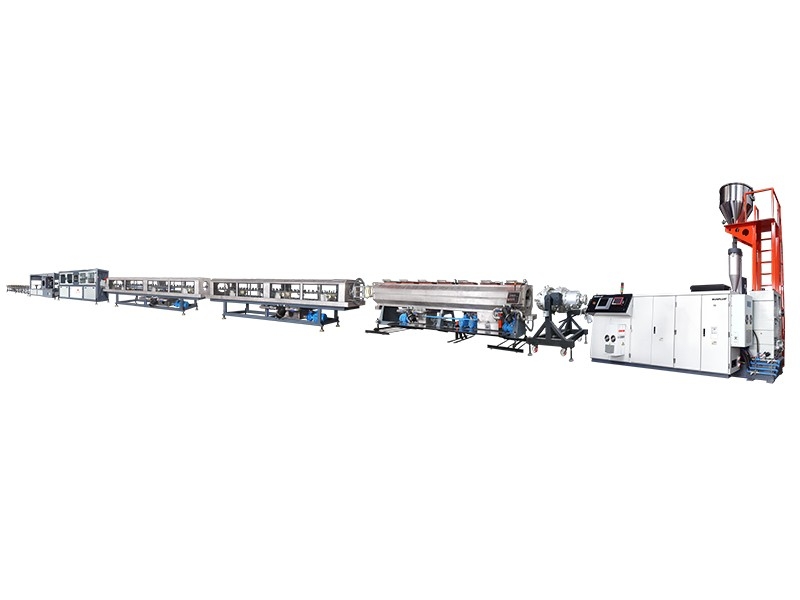

110-315mm HDPE pipe extrusion line

110-315mm HDPE pipe extrusion line is a middle size production line, the machine equipped with high efficiency screw extruder, which use 38:1 of screw L/D ratio, can reach high output with low energy consumption.

  • Brand:

    WONPLUS
  • Item NO.:

    SJ75/36+GF315
  • Payment:

    T/T, L/C
  • Product Origin:

    Kunshan city, China
  • Shipping Port:

    Shanghai port
  • Lead Time:

    30-60 days
  • Product Detail

Application:

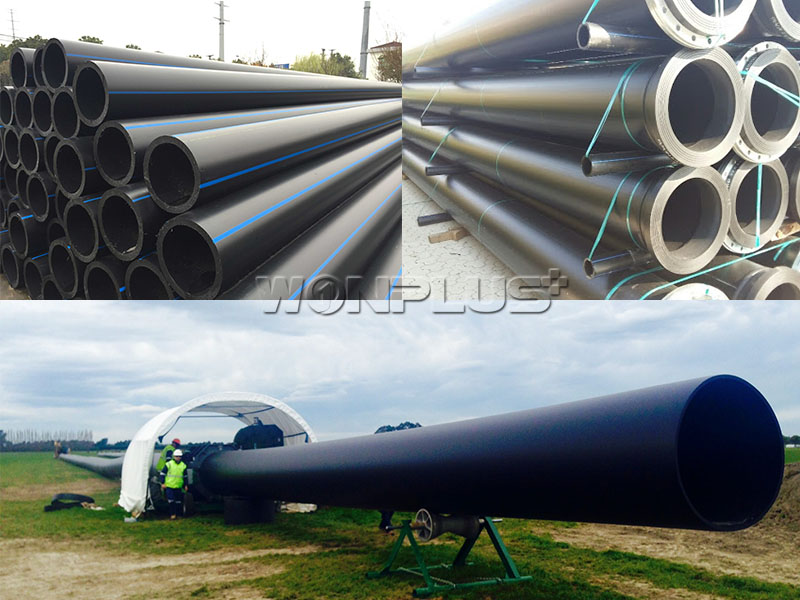

110-315mm HDPE pipe extrusion line is a good choice for factory,HDPE pipe is the perfect solution for municipal water supply and drainage system, urban water supply and drainage.

HDPE Pipe Making Machine



Equipment composition:

Single Screw Extruder + Co-extruder + Pipe Mould + Vacuum calibration tank + Water spraying cooling tank + Four pedrail Hauler + Dust-free Cutter +Stacker.


Advantage:

● High output and stable running performance.

● PLC automatic control system and HMI touch screen control panel.

● Adopt the most advanced spiral or basket die structure design.

● Haul-off machine with Servo motor driven, more stable and bigger range of speed adjust.

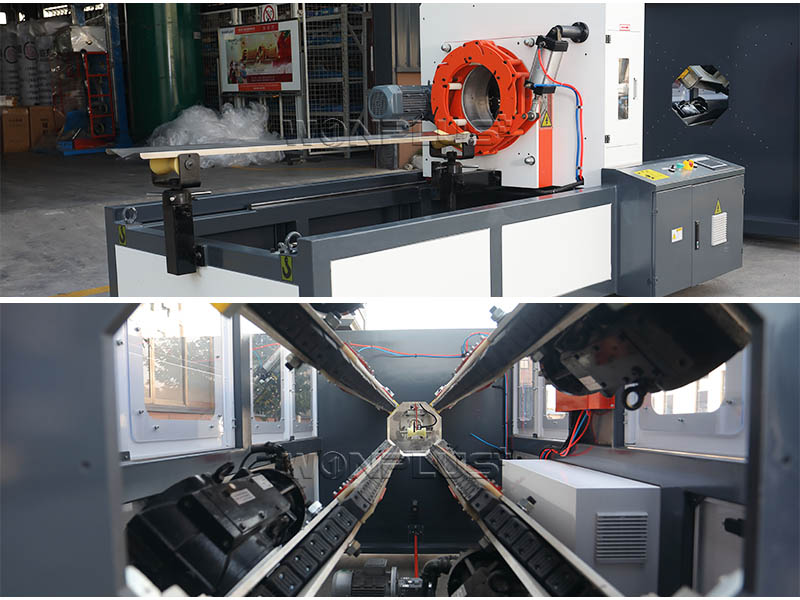

● Dust-free cutter (fly knife or planetary cutter), applied to PE pipes with different diameter range.

● Reliable performance, high production efficiency.


Technical Parameters:

Extrusion System

Extruder

Model

L/D

Driven Motor

Rotary Speed

Capacity (kg/h)

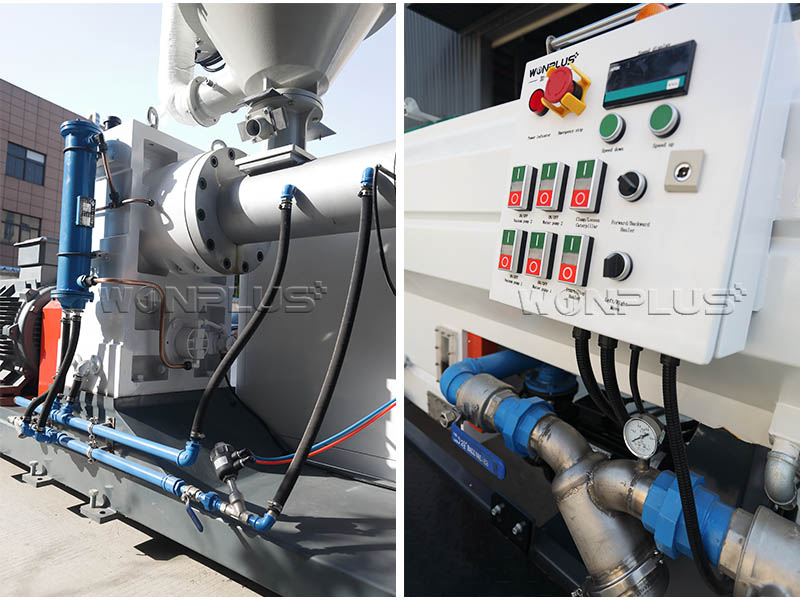

Single screw extruder

SJ-75/36

36:1

132kw

150rpm

400-450

Downstream Equipment (110-315mm)

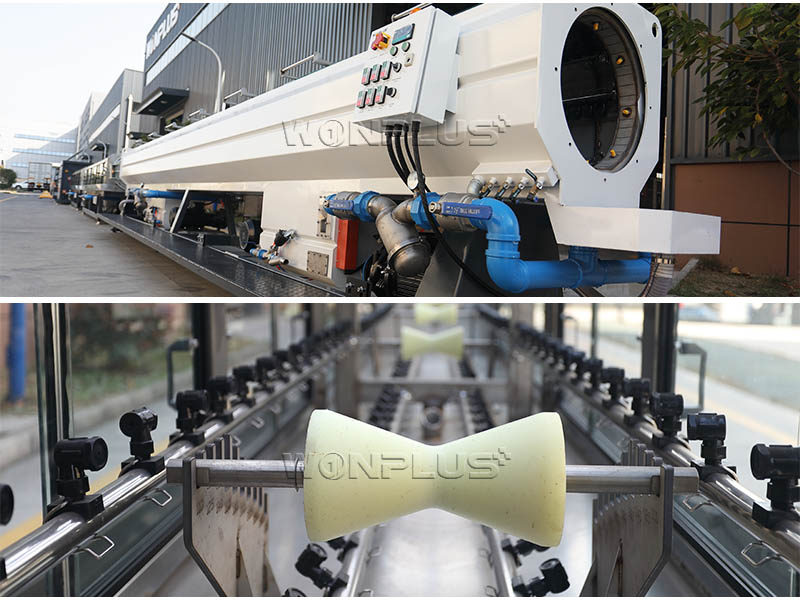

Vacuum calibration tank

1 set

Spraying cooling tank

2 sets

Hauler

Cutter

Stacker

Length: 8000mm

Length: 6000mm

Four pedrail type

Dust-free

Length:6000mm

Vacuum pump: 4kw*2sets

Water pump: 5.5kw*2sets

Servo motor 0.85kw*4sets

Cutting power: 3kw

Water pump5.5kw*2sets

0-6.4m/min

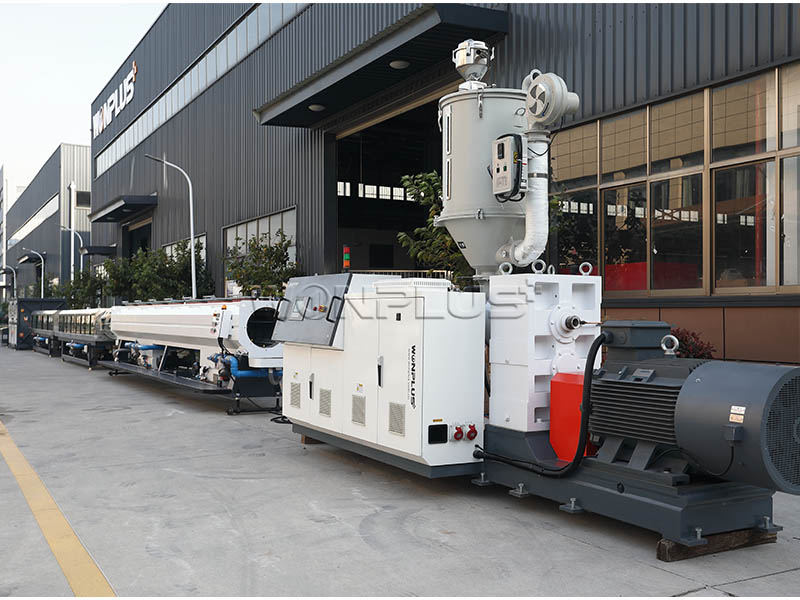

Extrusion Line Details:

HDPE pipe extrusion lineHDPE pipe extrusion linehdpe pipe extrusion machinehdpe pipe production line
