Pipe winder is suitable for plastic coiling packaging such as PE、PP-R pulling out of front hauler. winder tension mode.
Brand:
WONPLUSItem NO.:
SPS DPSPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysWinder Advantage:

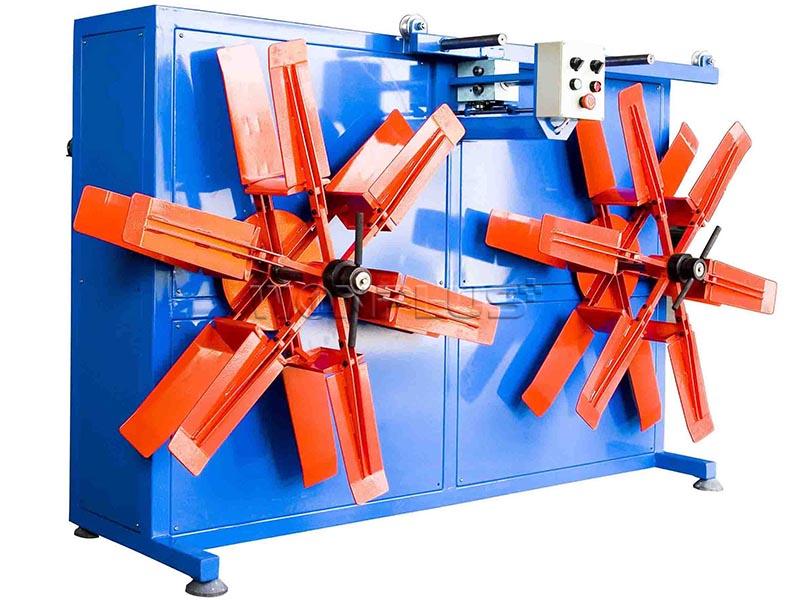

Double position winder is suitable for plastic coiling packaging such as PE、PP-R pulling out of front hauler. winder tension mode: Two sets of alternate winding ensure continuity. At the same time, it is equipped with light rod wire arrangement, automatic wire arrangement, uniform wire arrangement, neat winding, compact structure, high degree of automation, beautiful appearance and convenient operation.
Single winder is mainly suitable for PPR pipe, PE pipe, small hose and other pipe winding.Mainly with the WONPLUS factory production line and other downstream use, forming a set of production lines. Generally installed in the hauler after the process, so that the forming pipe diameter traction, directly rewinding, packaging, to avoid the confusion caused by winding.
Technical Parameters:
|
Item |
Specification |
|
|
Model Number |
SPS-1600 double station type |
DPS-3200 double station type |
|
Winding pipe |
20-63mm |
63-110mm |
|
Coil inner Dia. |
Φ550-1700mm |
Φ1700-2800mm |
|
Winding width |
350~500mm |
650mm (adjustable) |
|
Winding speed |
0.5-35m/min |
0.5-15m/min |
|
Torque motor |
10N.N + 25N.M |
60 N.M |
|
Air pressure |
0.6Mpa |
0.6Mpa |
|
Coil pipe length |
≥200m (for Φ63mm pipes) |
≥100m (for Φ110mm pipes) |
|
Others |
With air-move winding release device With automatic lining device |
With air-move winding release device With automatic lining device |
