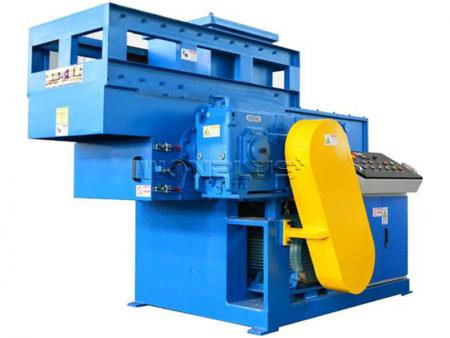

The shredder adopts advanced European technology, mainly used for shredding and recycling of all kinds of thick wall waste materials. It can effectively shred and crush large materials (large plastic pipe fittings, large diameter thick wall PE pipes, PE machine head materials, etc.), and is suitable for shredding and crushing pipes, board, profiles and other plastic products.
Brand:
WONPLUSItem NO.:
WTPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 days
Features:
1.Shredder hydraulic control, independent power system, solid structure, smooth operation;
2.The spindle is driven by a gear reducer, running smoothly, with low noise and high torque;
3.PLC program control system for plastic shredder, which can automatically reverse, shut down, realize the automatic operation of the equipment and make the machine more safe and reliable;
4.In view of the factors that are difficult to fix when the pipe is torn apart, a special fixed hopper is made to shred, which can improve the efficiency and output of the pipe shredding.
Technical Parameters:
|
Project / Type |
UNIT |
WT2250 |
WT2260 |
WT4060 |
WT4080 |
WT40100 |
WT40120 |
WT40150 |
WT48150 |
|
A |
(mm) |
1665 |
1865 |
2470 |
2770 |
2770 |
2990 |
2990 |
3300 |
|
B |
(mm) |
1130 |
1230 |
1420 |
1670 |
1870 |
2370 |
2780 |
2780 |
|
C |
(mm) |
690 |
790 |
1150 |
1300 |
1300 |
1400 |
1400 |
1425 |
|
D |
(mm) |
500 |
600 |
600 |
800 |
1000 |
1200 |
1500 |
1500 |
|
E |
(mm) |
630 |
630 |
855 |
855 |
855 |
855 |
855 |
930 |
|
H |
(mm) |
1785 |
1785 |
2200 |
2200 |
2200 |
2200 |
2200 |
2720 |
|
Cylinder stroke |
(mm) |
400 |
500 |
700 |
850 |
850 |
950 |
950 |
950 |
|
Rotor diameter |
(mm) |
ф220 |
ф220 |
ф400 |
ф400 |
ф400 |
ф400 |
ф400 |
ф400 |
|
Spindle Speed |
(r/min) |
83 |
83 |
83 |
83 |
83 |
83 |
83 |
83 |
|
Screen diameter |
(mm) |
ф40 |
ф40 |
ф40 |
ф40 |
ф40 |
ф40 |
ф40 |
ф40 |
|
Moving knife |
(PCS) |
26 |
30 |
34 |
46 |
58 |
70 |
88 |
132 |
|
Fixed knife |
(PCS) |
4 |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
|
Motor Power |
(kw) |
15 |
18.5 |
30 |
37 |
45 |
55 |
75 |
90 |
|
Hydraulic Power |
(kw) |
2.2 |
2.2 |
3.75 |
3.75 |
3.75 |
5.5 |
5.5 |
5.5 |
|
Weight |
(KG) |
1400 |
1550 |
3000 |
3600 |
4000 |
5000 |
6200 |
8000 |
