800-1600mm multilayer HDPE pipe extrusion line

800-1600mm HDPE pipe extrusion line is a large size pipe production line.High capacity extruder with stable die and downstream, together with Gravimetric system and Siemens PLC, the pipe production efficiency is super high. More and more big size pipes are widely used in public project, for water supply&discharge, gas transport, etc.

  • Brand:

    WONPLUS
  • Item NO.:

    SJ150/36+SJ90/38+GF1
  • Payment:

    T/T, L/C
  • Product Origin:

    Kunshan city, China
  • Shipping Port:

    Shanghai port
  • Lead Time:

    75-90 days
  • Product Detail

Application:

1600mm HDPE pipe production line is a large size pipe making equipment. Big size HDPE pipes are widely used in public project, such as water supply&discharge, gas transport, etc.

hdpe extrusion machine


Production Line Advantage:

● High output and stable running performance.

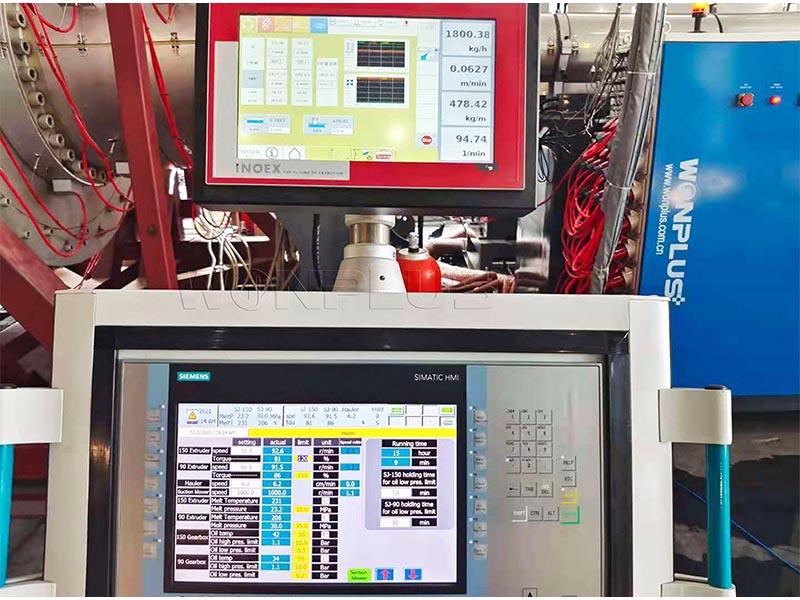

● PLC automatic control system and HMI touch screen control panel.

● Automatic mould temperature control system.

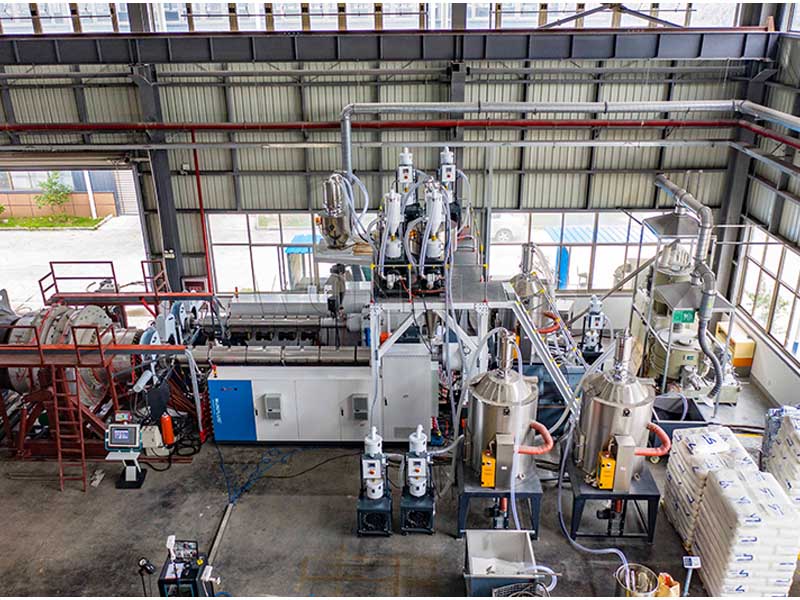

● Gravimetric dosing system.

● Adopt the most advanced spiral or basket die structure design.

● Haul-off machine with Servo motor driven, more stable and bigger range of speed adjust. Equipped with Wincher, easier to pull the pipe at beginning stage.

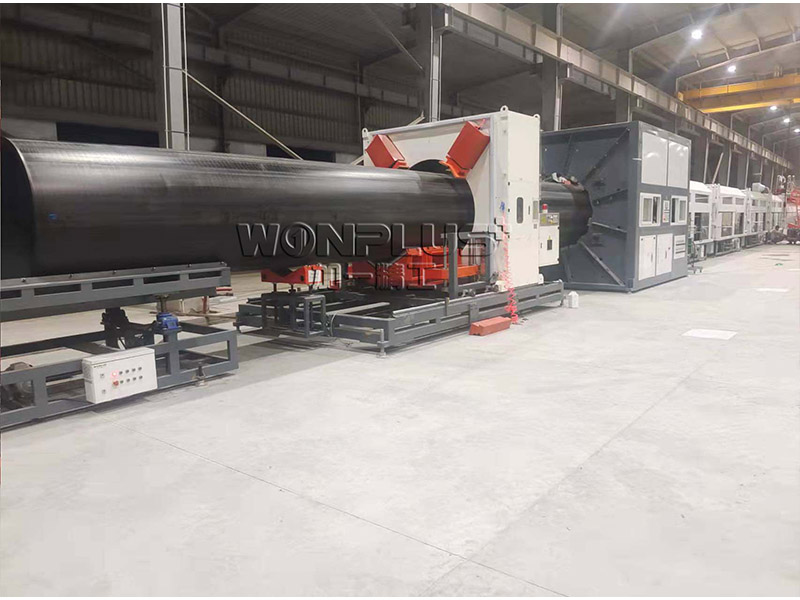

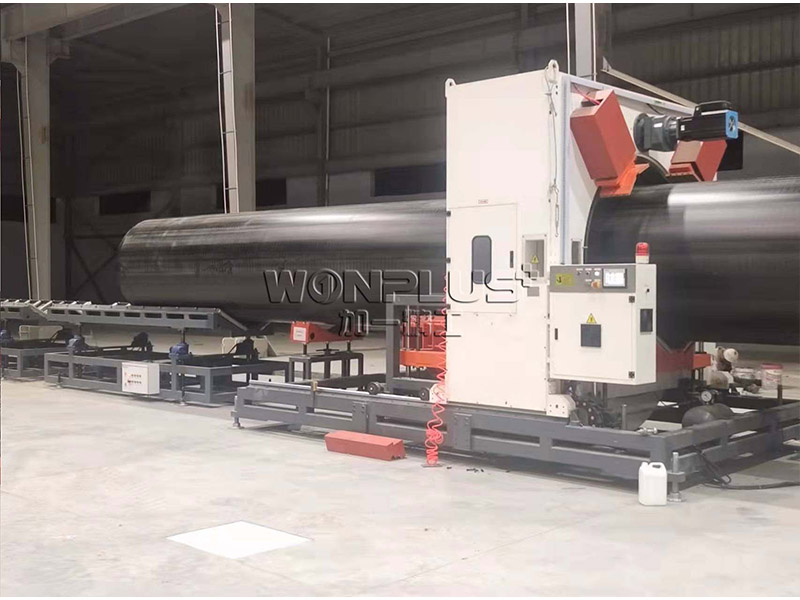

● Dust-free cutter (fly knife or planetary cutter), applied to PE pipes with different diameter range.

● Reliable performance, high production efficiency.


Equipment composition:

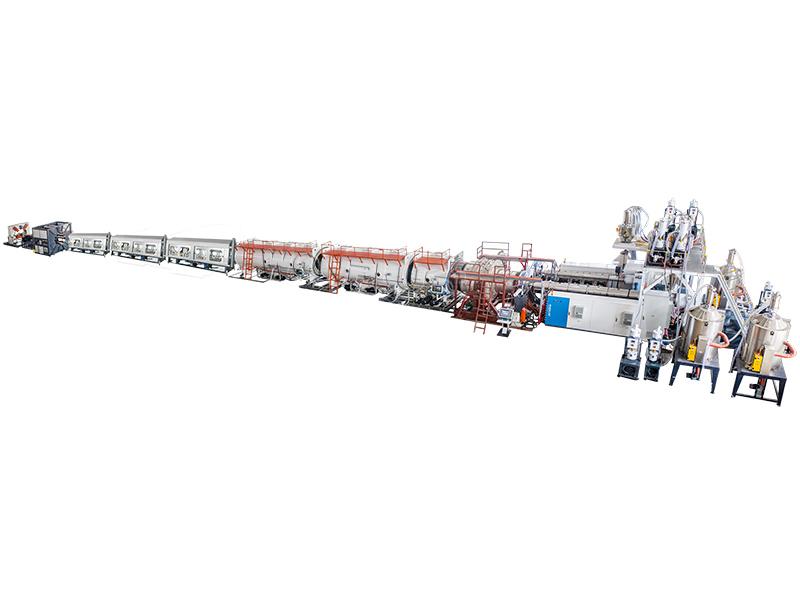

Single Screw Extruder + Co-extruder + Pipe Mould + Vacuum calibration tank + Water spraying cooling tank + Six pedrail Hauler + Dust-free Cutter +Stacker.



Technical Parameters:

Extrusion System

Extruder

Model

L/D

Driven Motor

Rotary Speed

Capacity (kg/h)

Single screw extruder

SJ-150/36

36:1

400kw

104rpm

1500

SJ-90/38 38:1 250KW 150rpm 1000

Downstream Equipment (800-1600mm)

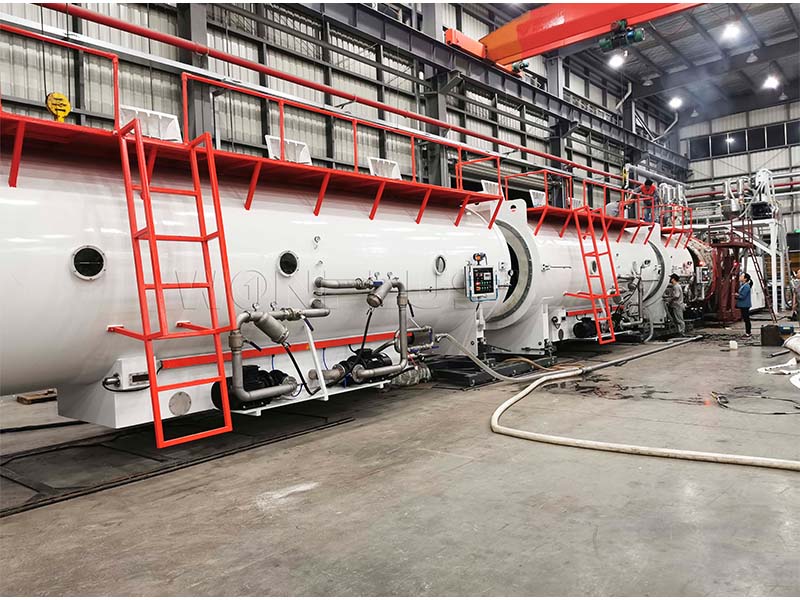

Vacuum calibration tank

(Three section)

1 set

Spraying cooling tank

4 sets

Hauler

Cutter

Stacker

2sets

Length: 16000mm

Length: 6000mm

12 pedrail type

Dust-free

Length:6000mm

Vacuum pump:7.5kw*6sets

Water pump: 7.5kw*2sets for each

Servo motor 0.85kw*12sets

Cutting power: 7.5kw

Water pump:11kw*6sets

0-0.5m/min

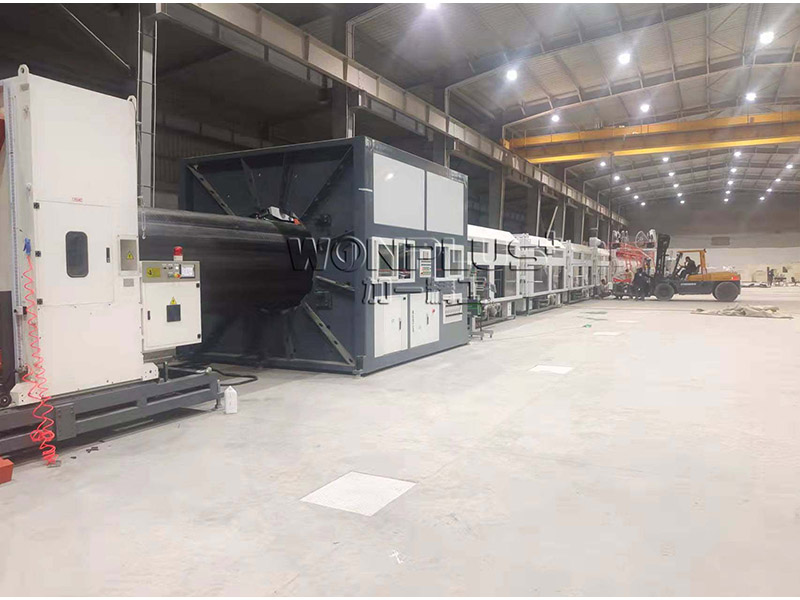

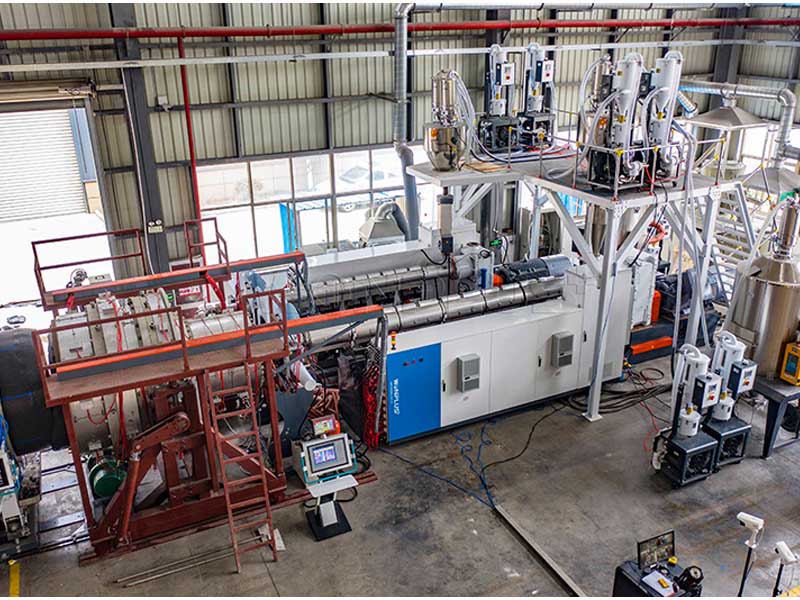

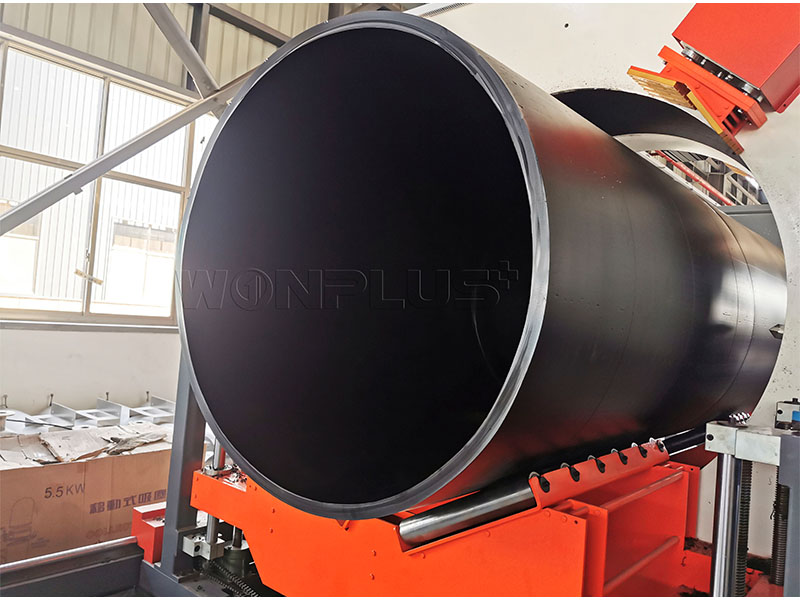

Extrusion Line Details:

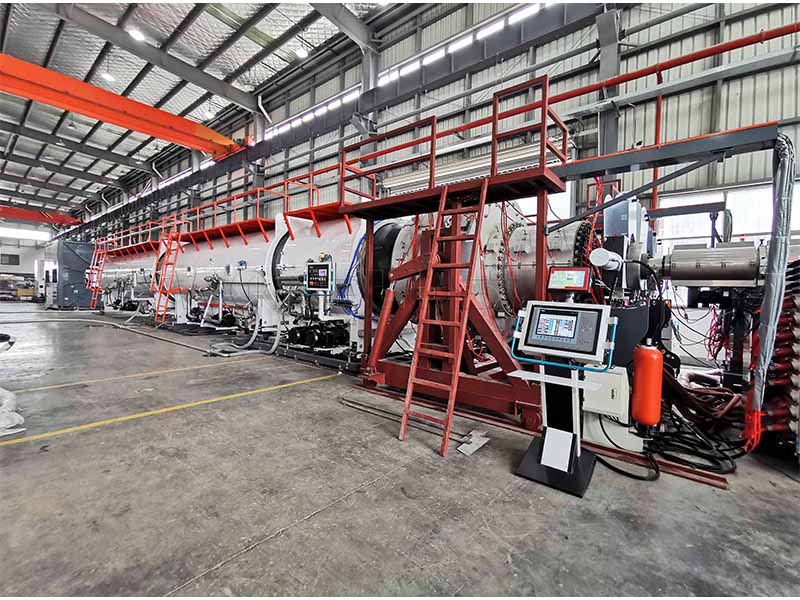

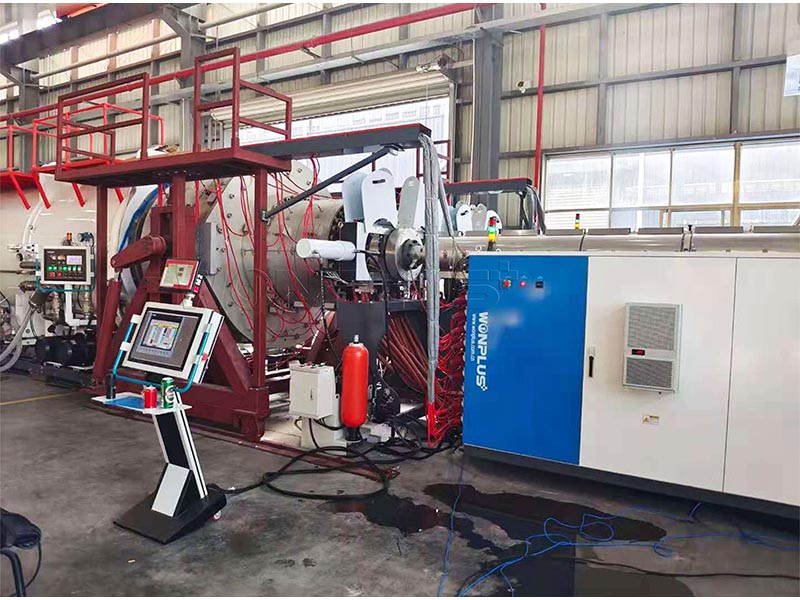

HDPE pipe production line
