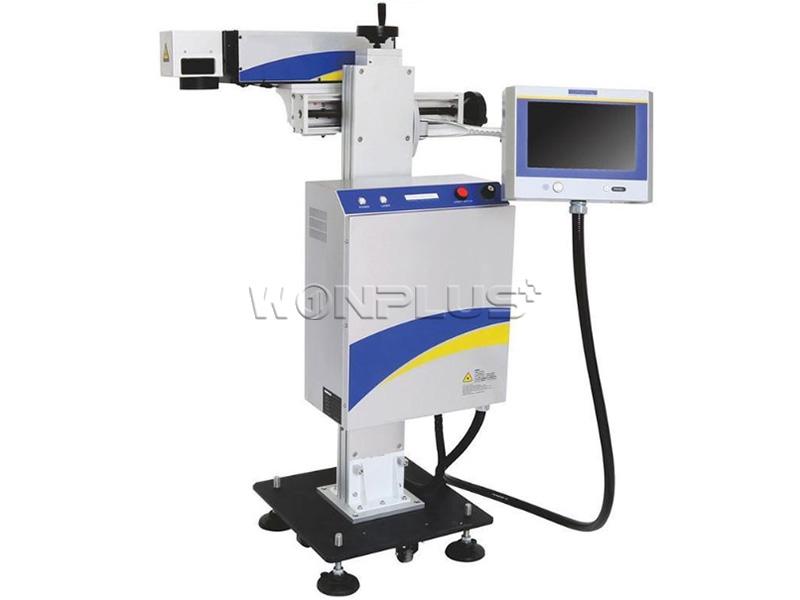

Pipe laser printer is widely used to print the label on plastic pipes,profile or panels, which is working together with extrusion line.
Brand:
WONPLUSItem NO.:
LSPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysPrinter Technical Parameters:
F3020
Laser Marking Machine Technical Parameters
Laser type
Fiber laser wavelength: 1064nm, can meet the working requirements of
more than 100,000 hours
Output power
20W
Focal distance
210mm（standard）
Maximum linear marking speed
10000mm/S
Marking
Parameters
Marking range
110mm×110mm，Maximum making range：500×500mm
Marking lines number
Set the number of lines arbitrarily within the effective marking
range
Minimum line width
0.02mm
Line speed
Depending on the marking content, up to 50 m / min
Character height
0.2-70mm
Font
Single line font, dot matrix font, TrueType font
Marking content
Text, graphics, barcode, QR code, dynamic serial number, real-time
clock, TXT file, RS232 communication data, etc.
Marking angle
Any angle, adjustable in 4 dimensions
Operation
Interface
Monitor
Industrial touch screen
Operating language
Chinese, English (can support other languages)
Operating system
Linux
Input device
handwriting
Environmental
Requirements
Protection level
≥IP54
Cooling method
Air cooling
Ambient temperature
-5-45 Celsius
Humidity
Relative humidity 90% RH, non-condensing
Power supply
220V,0.5KVA
