screw extruder machine
Products

PVC/WPC profile extrusion line

PVC profiles such as window & door profiles, PVC window sills, etc.; WPC profiles such as decking, door panels, kitchen, etc. According to customer’s requirements, most suitable screws can be made so as to make best plasticity state and material quality. High plasticity state, low power consumption, high cost performance.

  • Brand:

    WONPLUS
  • Item NO.:

    SJZ+YF240
  • Payment:

    T/T, L/C
  • Product Origin:

    Kunshan city, China
  • Shipping Port:

    Shanghai port
  • Lead Time:

    60-75 days
  • Product Detail

Equipment composition:

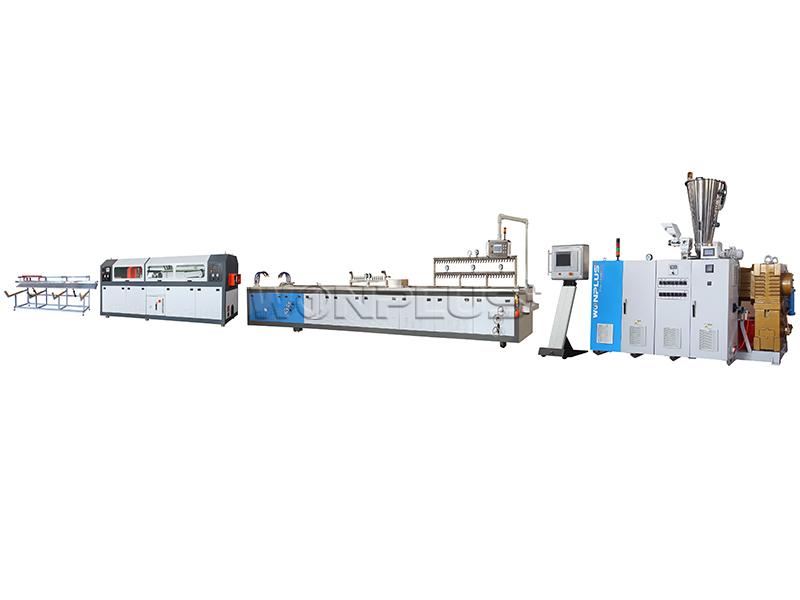

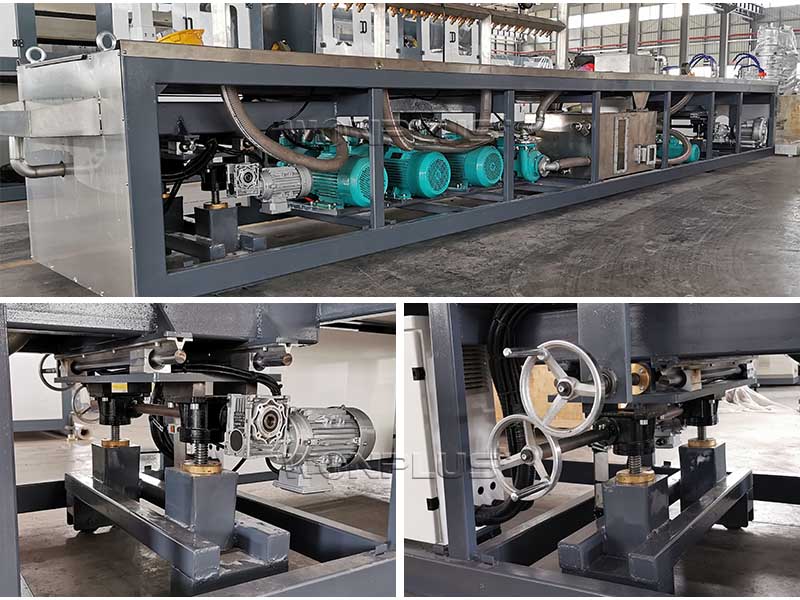

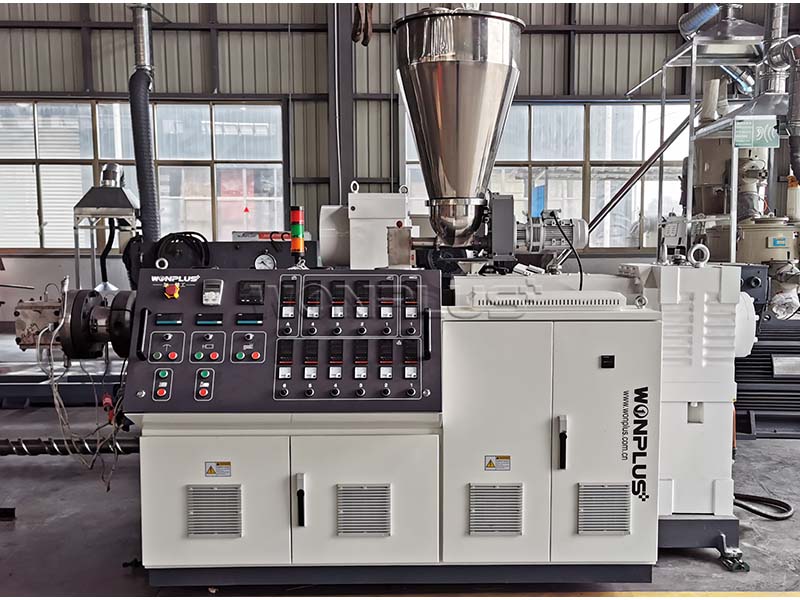

Conical Twin Screw Extruder + Profile Mould + Vacuum Calibration Table + Hauler + Cutter + Stacking Table


Features:

● PLC control system and HMI touch screen control panel, or Digital display control instrument

● Vertical type integrated gearbox, with high torque, accuracy and durable performance.

● High flexibility in raw material combinations.

● Speed adjustment by inverter.

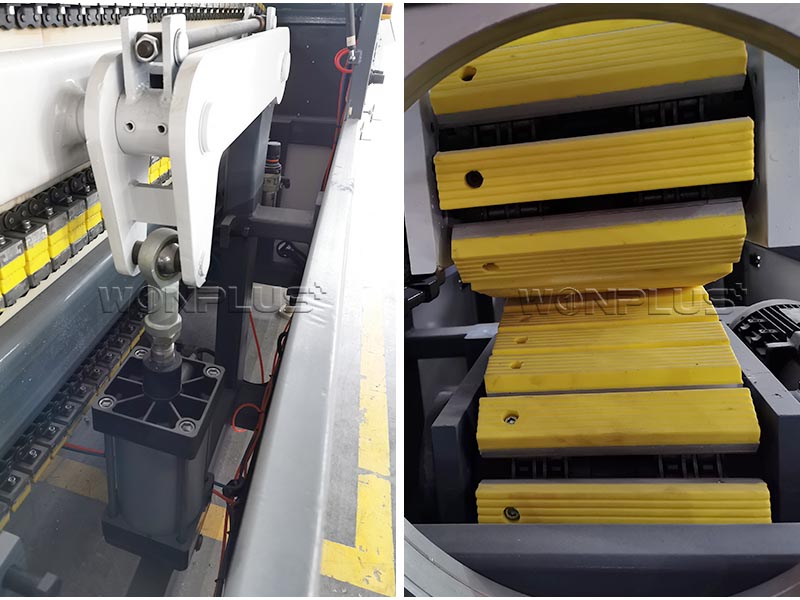

● Hauler rubber pad dimensions can be modified upon request.

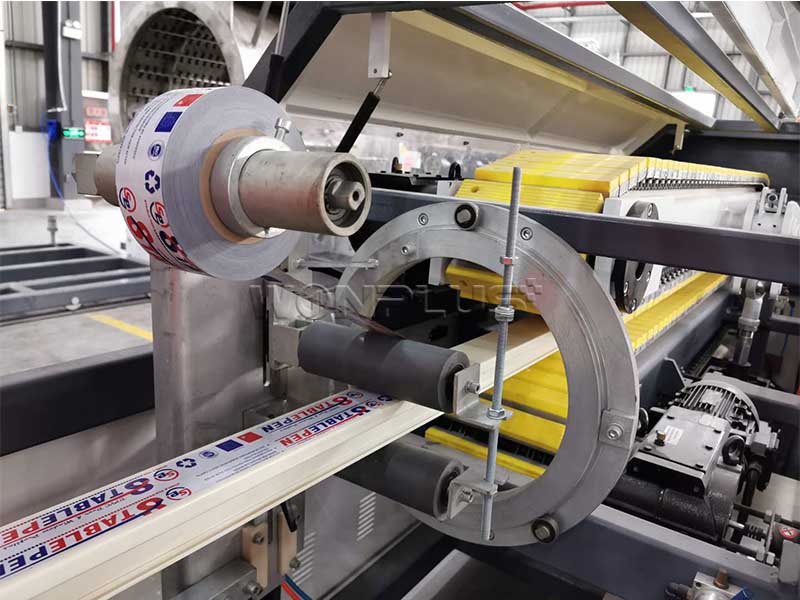

● Special cutter design for profiles. Dust and chip-free cutting systems.

● Different saw dimensions for specific profile.


Technical Parameters:

PRODUCT NAME

PVC/WPC Profile Extrusion Line

EXTRUDER

SJZ-65/135 or SJZ-55/110 or SJZ-51/105

MAIN MOTOR POWER

37KW/22KW/18.5KW

PRODUCT WIDTH

240MM

300MM

Downstream Equipment

YF240S

YF240

YF300

YF240-2

Products

Wire Trunking, Window, Rain Gutter Profile, PVC/WPC Door Profile, Etc.

Door Frame, Rain Gutter Profile, Panel Profile, Etc.

Double Outlet Wire Trunking

Mould

Single

Single

Single

Double

Downstream power

22

37.2

37.2

71

Table length

4

7.2

7.2

11

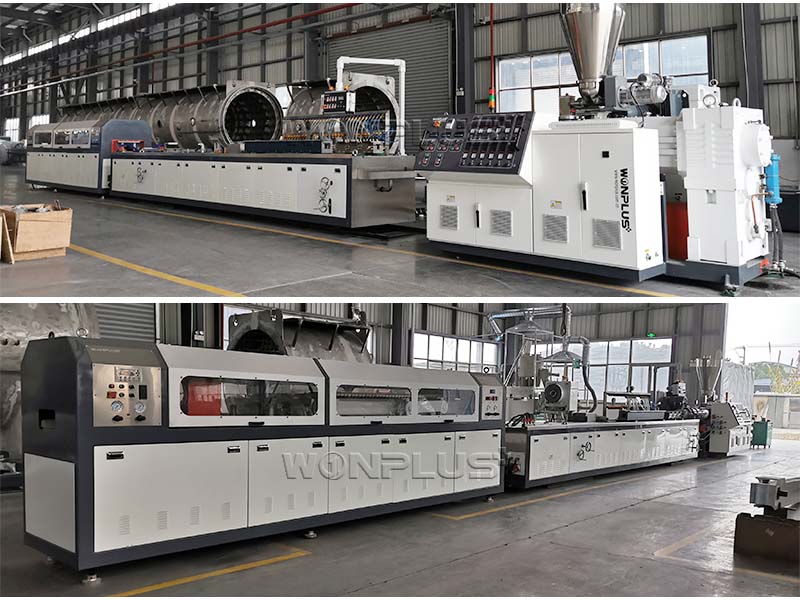

Profile Extrusion Line Details:

wpc machine manufacturersChina extruder lineChina extruder line
