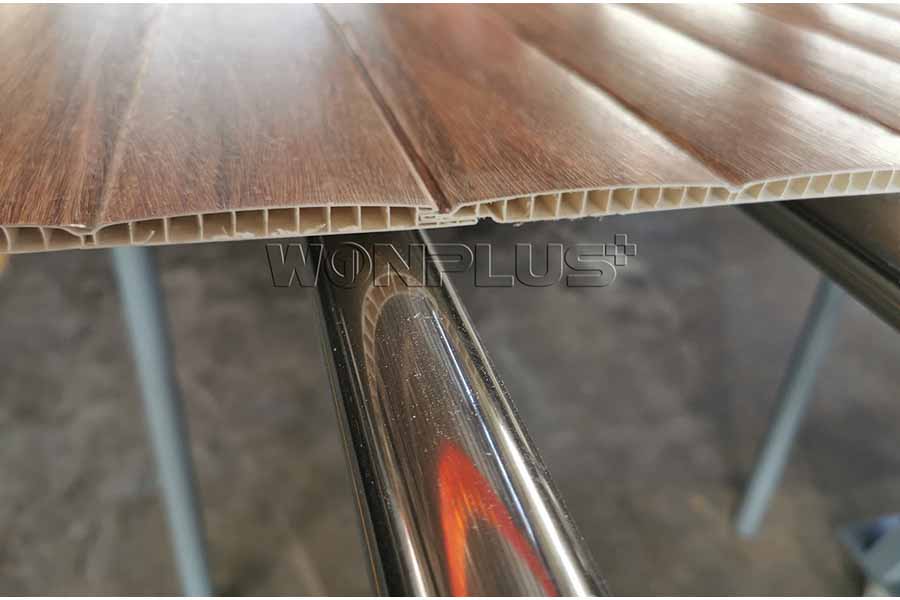

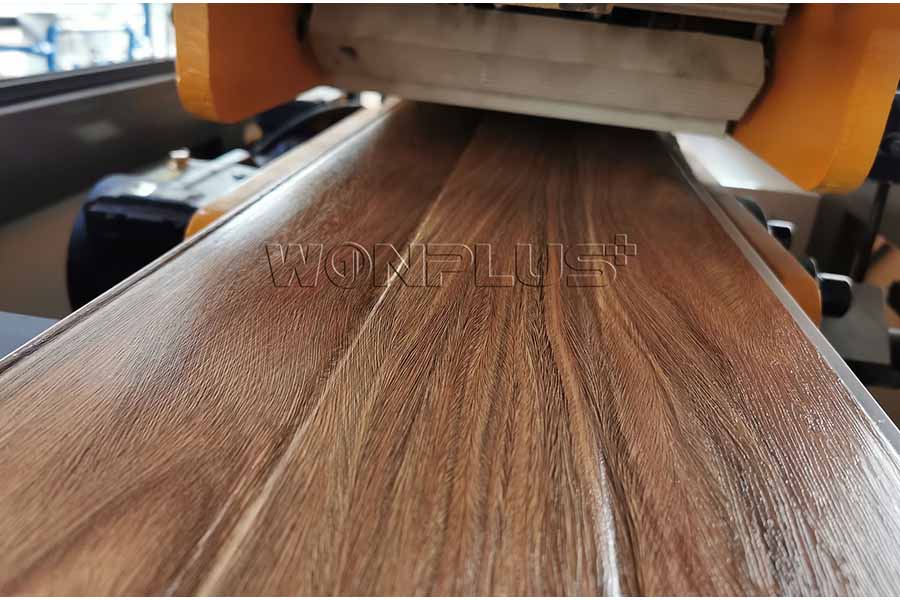

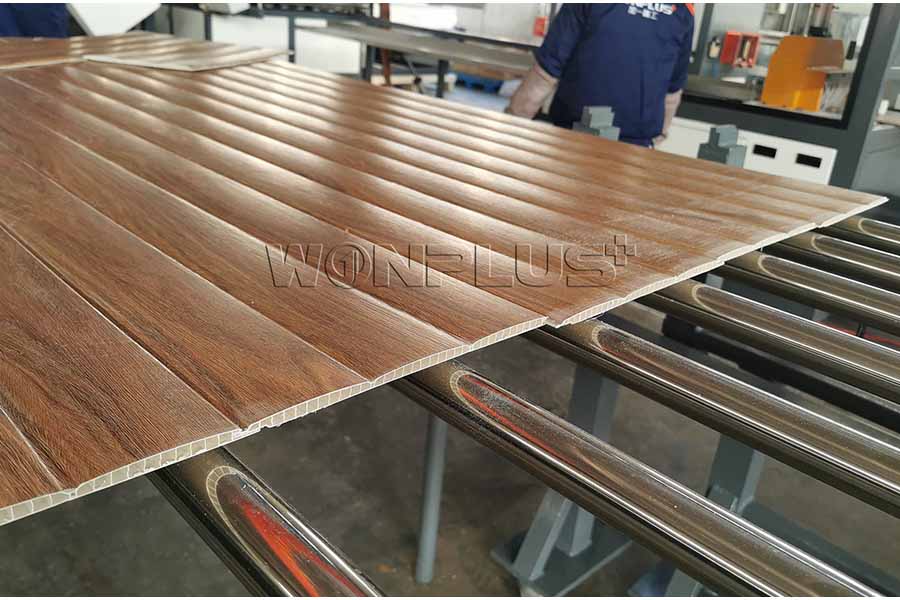

PVC ceiling profiles is widely used in home decoration. According to customer’s requirements, most suitable screws can be made so as to make best plasticity state and material quality. High plasticity state, low power consumption, high cost performance.
Brand:
WONPLUSItem NO.:
SJZ-55/110 + YF300Payment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment composition:

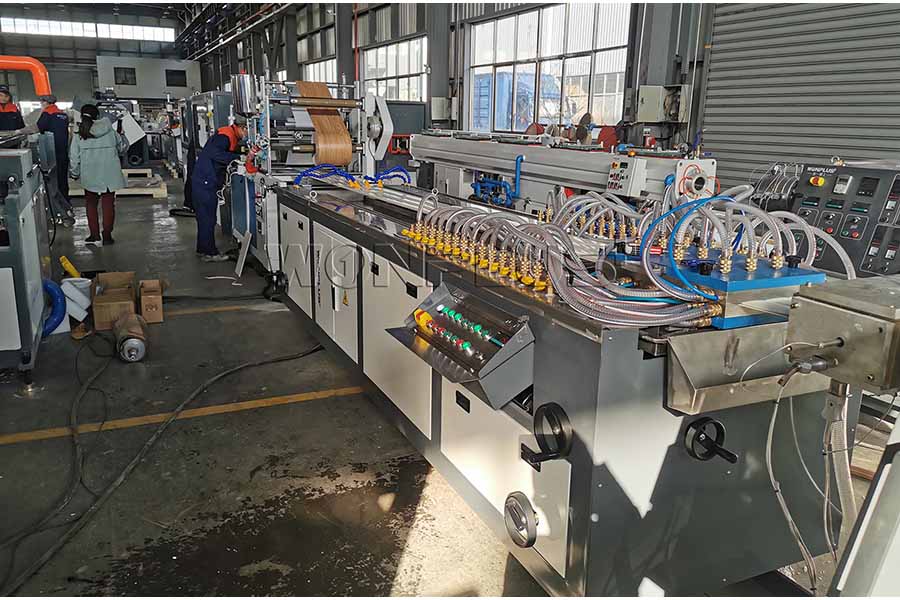

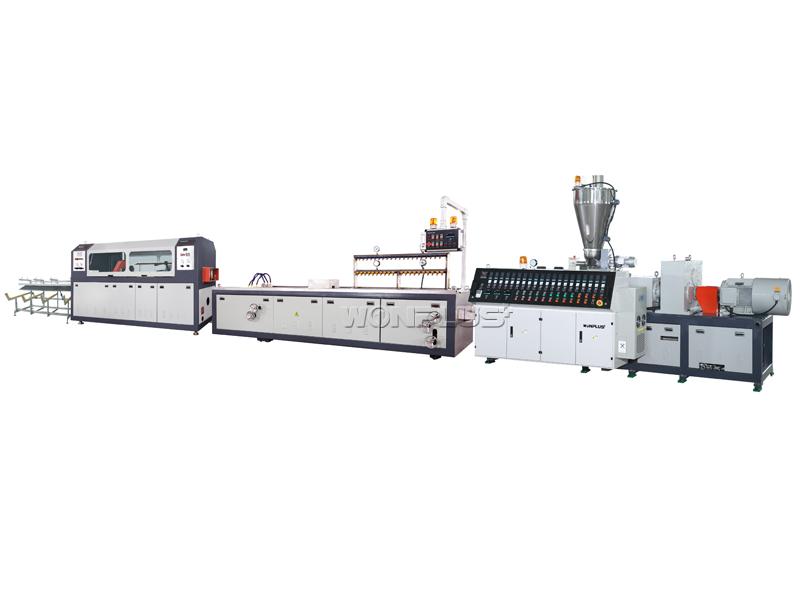

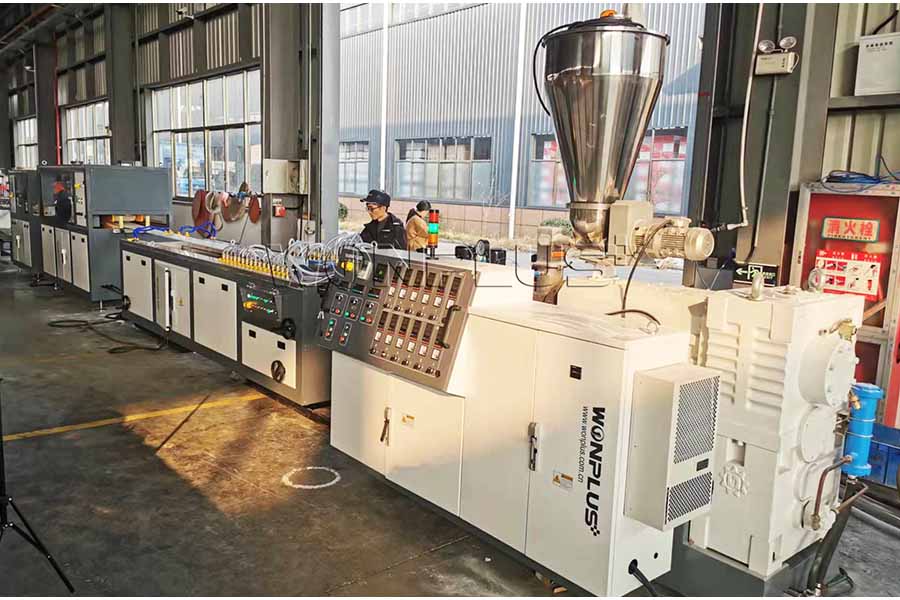

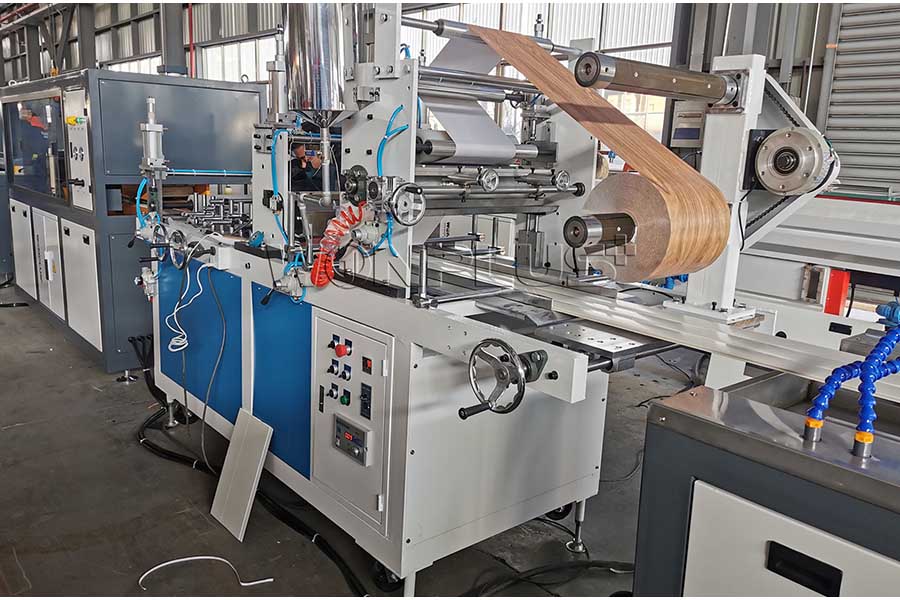

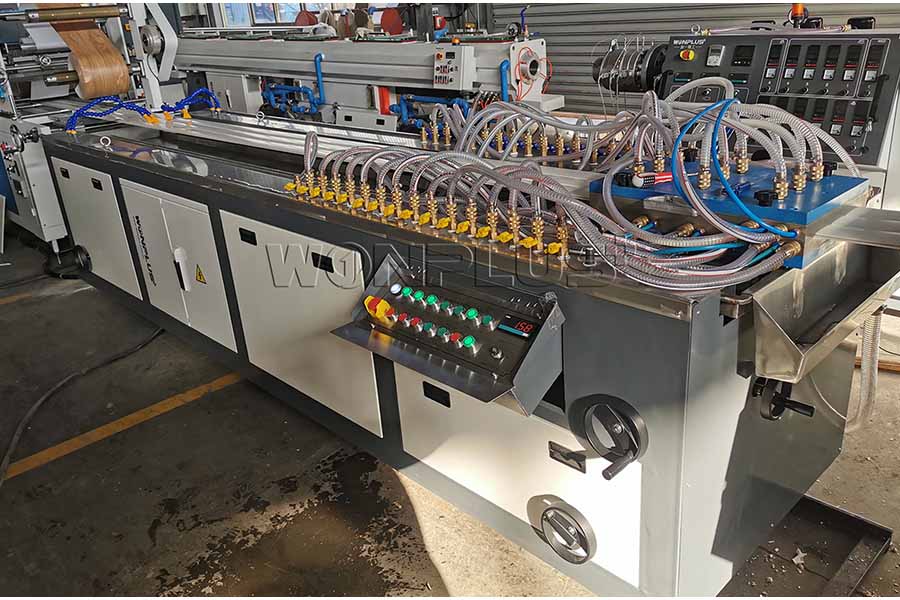

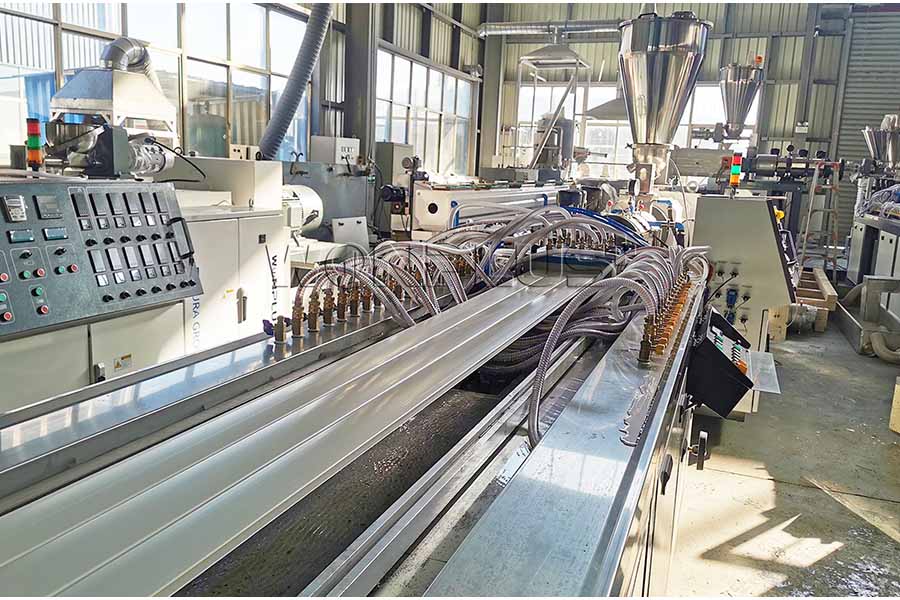

Conical Twin Screw Extruder + Profile Mould + Vacuum Calibration Table + Lamination machine(optional) + Hauler + Cutter + Stacking Table
Features:
● PLC control system and HMI touch screen control panel, or Digital display control instrument
● Vertical type integrated gearbox, with high torque, accuracy and durable performance.
● High flexibility in raw material combinations.
● Speed adjustment by inverter.
● Hauler rubber pad dimensions can be modified upon request.

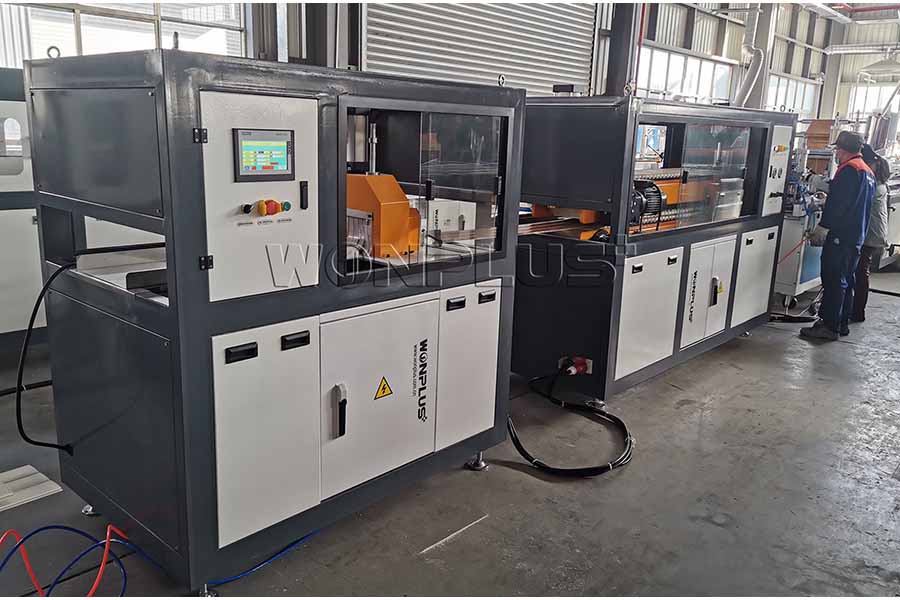

● Special cutter design for profiles. Dust and chip-free cutting systems.
● Different saw dimensions for specific profile.
Technical Parameters:
|
PRODUCT NAME |
PVC Ceiling Panel Extrusion Line |
|
EXTRUDER |
SJZ-55/110 |
|
MAIN MOTOR POWER |
22KW |
|
PRODUCT WIDTH |
300MM |
|
Downstream Equipment |
|
|
Model |
YF300 |
|
Products |
Ceiling panel, Door Frame, Rain Gutter Profile, Panel Profile, Etc. |
|
Mould |
Single Cavity |
|
Downstream power |
37.2 kw |
|
Table length |
4m |
Profile Extrusion Line Details:
PVC profiles such as window & door profiles, PVC window sills, etc.; WPC profiles such as decking, door panels, kitchen, etc. According to customer’s requirements, most suitable screws can be made so as to make best plasticity state and material quality. High plasticity state, low power consumption, high cost performance.
PVC panel such as PVC door, PVC window sills, etc.; WPC profiles panel such as decking, door panels, kitchen, etc.According to customer’s requirements, most suitable screws can be made for best plasticity state and material quality.High plasticity state, low power consumption, high cost performance.
It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers. Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
Parallel twin screw extruder is a kind of equipment for extruding PVC powder, PVC wood (WPC) powder, or PE wood pallets, using different kind of mould and auxiliary machine, can produce different kinds of PVC pipes, profile, panel, sheet, roofing, flooring, board and granules.
315-630mm HDPE pipe extrusion line is a large size production line.High output extruder with quality die and downstream equipment, together with Gravimetric system and Siemens PLC, with super high pipe production efficiency. Big size pipes are widely used in public project, such as water supply&discharge, gas transport, etc.
110-315mm HDPE pipe extrusion line is a middle size production line, the machine equipped with high efficiency screw extruder, which use 38:1 of screw L/D ratio, can reach high output with low energy consumption.
PP,PE granulation production line for different shapes of materials, different feeding methods, different properties of materials, design the corresponding screw structure.
Pipe laser printer is widely used to print the label on plastic pipes,profile or panels, which is working together with extrusion line.
