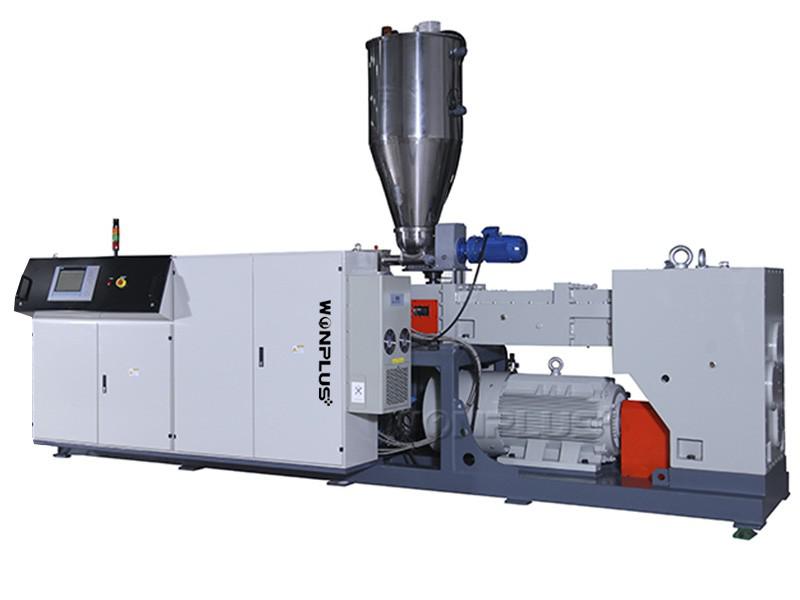

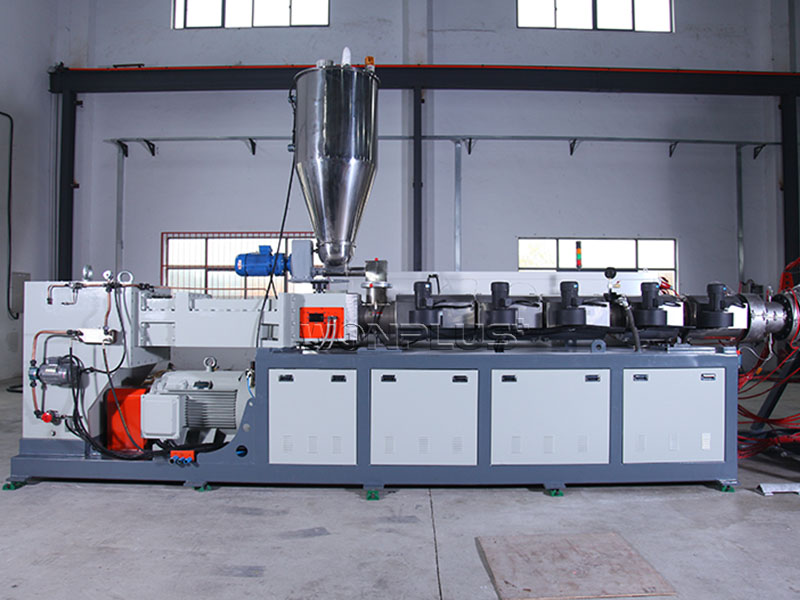

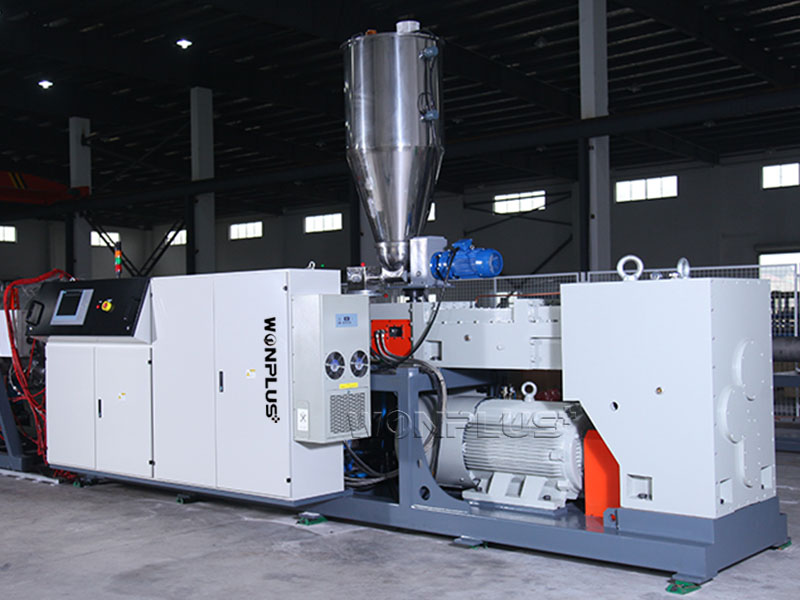

Parallel twin screw extruder is a kind of equipment for extruding PVC powder, PVC wood (WPC) powder, or PE wood pallets, using different kind of mould and auxiliary machine, can produce different kinds of PVC pipes, profile, panel, sheet, roofing, flooring, board and granules.
Brand:
WONPLUSItem NO.:
SJPPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysFeatures:
● High output and stable running performance

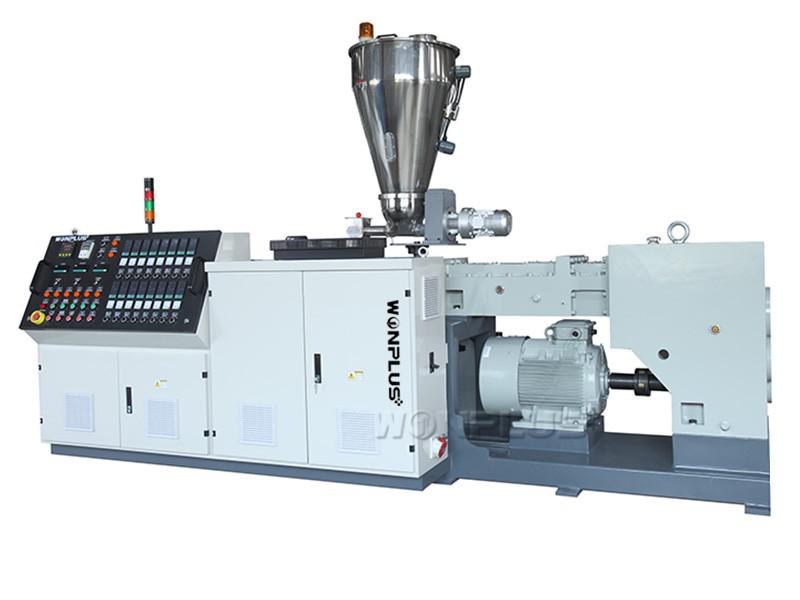

● PLC control system and HMI touch screen control panel, or Digital display control instrument
● Vertical type integrated gearbox, with high torque, accuracy and durable performance.
● Equipped with degassing zone
● Optimized double screw material feeding system for stable production of PVC powder
● Bimetallic screw and barrel
● Screw inner temperature controlled by thermo oil pump system, barrel with air cooling and water cooling system
Technical Parameters:
|
Model |
SJP-75 |
SJP-90 |
SJP-110 |
SJP-120 |
SJP-130 |
SJP-135 |
|
Power (KW) |
45 |
55 |
90 |
110 |
132 |
160 |
|
Screw Dia. (mm) |
75 |
90 |
110 |
120 |
130 |
135 |
|
Screw Number |
2 |
2 |
2 |
2 |
2 |
2 |
|
Capacity (kg/h) |
300-400 |
400-500 |
500-600 |
600-700 |
800-1000 |
1000-1300 |
|
Center Height |
1050 |
1050 |
1050 |
1050 |
1050 |
1250 |
Extruder Details:
PVC panel such as PVC door, PVC window sills, etc.; WPC profiles panel such as decking, door panels, kitchen, etc.According to customer’s requirements, most suitable screws can be made for best plasticity state and material quality.High plasticity state, low power consumption, high cost performance.
Equipped with relevant mould, the automatic belling machine could bell the plastic pipe into U type and R type automatically.
PVC four outlet pipe extrusion line has the model of 16-32mm four outlet and 32-63mm four outlet, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
PVC flooring sheet is widely used as factory roof, warehouse roof, agricultural market roof etc.The roofing sheet long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof, noise isolation.Easy installation and low transportation cost.
315-630mm HDPE pipe extrusion line is a large size production line.High output extruder with quality die and downstream equipment, together with Gravimetric system and Siemens PLC, with super high pipe production efficiency. Big size pipes are widely used in public project, such as water supply&discharge, gas transport, etc.
PVC profiles such as window & door profiles, PVC window sills, etc.; WPC profiles such as decking, door panels, kitchen, etc. According to customer’s requirements, most suitable screws can be made so as to make best plasticity state and material quality. High plasticity state, low power consumption, high cost performance.
PVC granule is widely used as raw materials for injection molding processing, extrusion procession and raw materials for soft PVC products production and so on.WPC granule is widely used as raw materials for WPC production.
Pipe laser printer is widely used to print the label on plastic pipes,profile or panels, which is working together with extrusion line.
