PVC multi layers co-extrusion pipe production line machine is used to produce three layers or four layers PVC pipe. Main extruder adopts two or three sets conical twin screw extruder, different capacity extruder for option.
Brand:
WONPLUSItem NO.:
MULTI SJZ+GFPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment Composition:

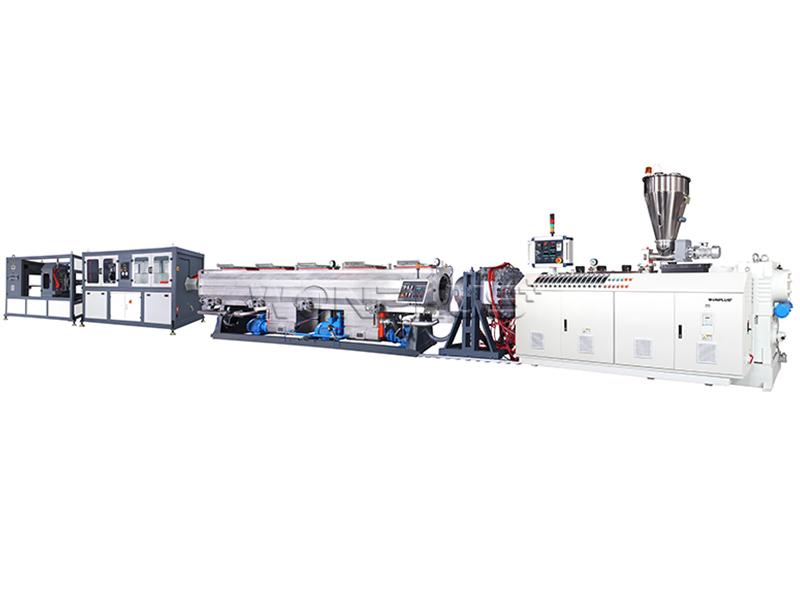

Conical Twin Screw Extruder (2 or 3 sets) + Co-extrusion multi layers PVC pipe mould + Vacuum calibration tank + Caterpillar type Hauler + Dust-free Cutter + Stacker
Advantage:
2 or 3 sets of conical twin screw extruder machine are used to co-extrusion three-layer or four-layer PVC pipes. The pipe sandwich layer is made of high calcium PVC or PVC foaming material.

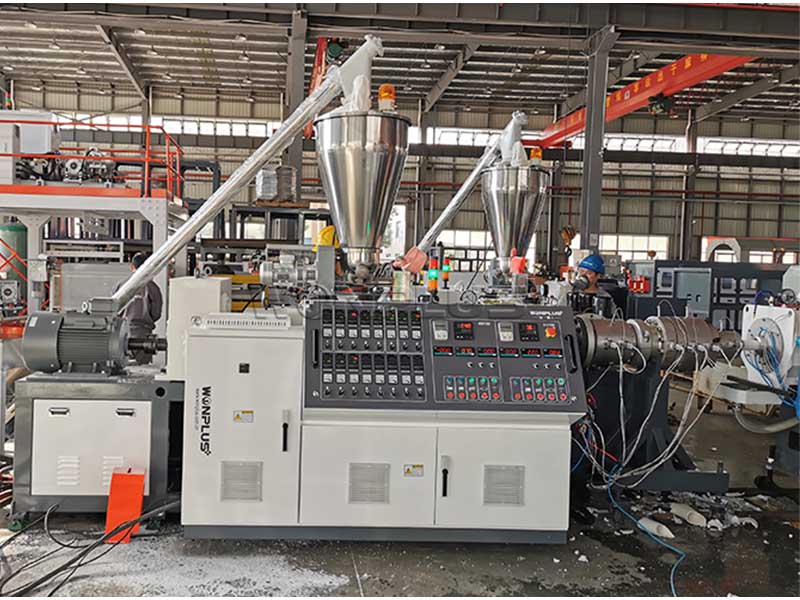

● The extruder adopts super wear-resistant alloy screw barrel, the twin-screw feeder is evenly fed, and the powder is not bridged;

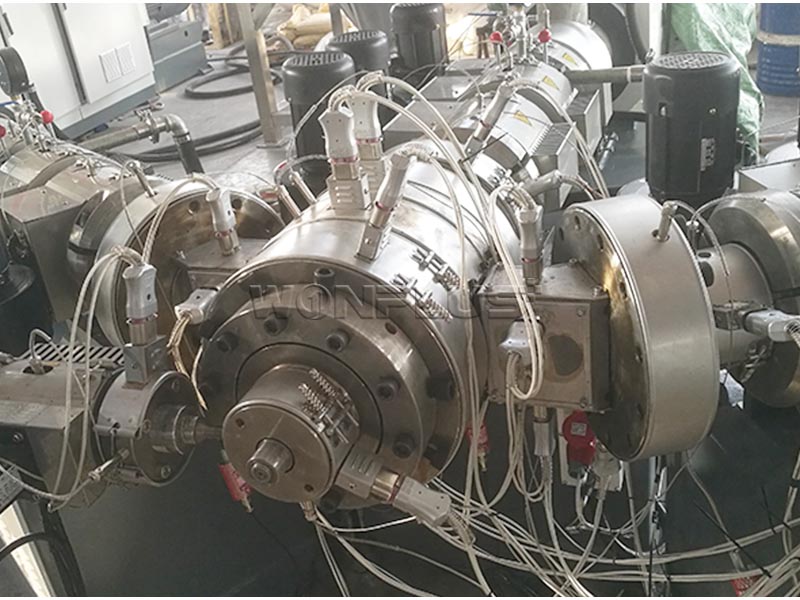

● The optimized design of PVC three-layer mold, the runner is chrome plated and highly polished, wear-resistant and corrosion-resistant; with the special sizing sleeve, the production speed is fast and the pipe quality is good;
● The cutter adopts rotary clamping device, which adapts to different pipe diameters and avoids the trouble of frequent replacement of clamps. Equipped with a new adjustable floating chamfering mechanism, which can be adjusted according to pipe diameter and wall thickness. Adjust the chamfering size, cut and chamfering in one step. Closed vacuum device, better chip suction effect.
Technical Parameters:
|
Pipe diameter(mm) |
Ø50 - Ø160 |
Ø75 - Ø250 |
|
Extruder(middle layer) |
SJZ-65/132 |
SJZ-80/156 |
|
Extruder (outer & inner layer) |
SJZ-65/132 or SJZ-55/110 |
SJZ-65/132 |
|
Layer structure |
ABA, ABC, ABCA |
ABA, ABC, ABCA |
|
Length of vacuum tank(mm) |
6000 |
6000 |
|
Haul-off machine |
3 claw |
3 claw |
|
Cutting machine |
planetary cutting |
planetary cutting |
Extrusion Line Details:
Application:

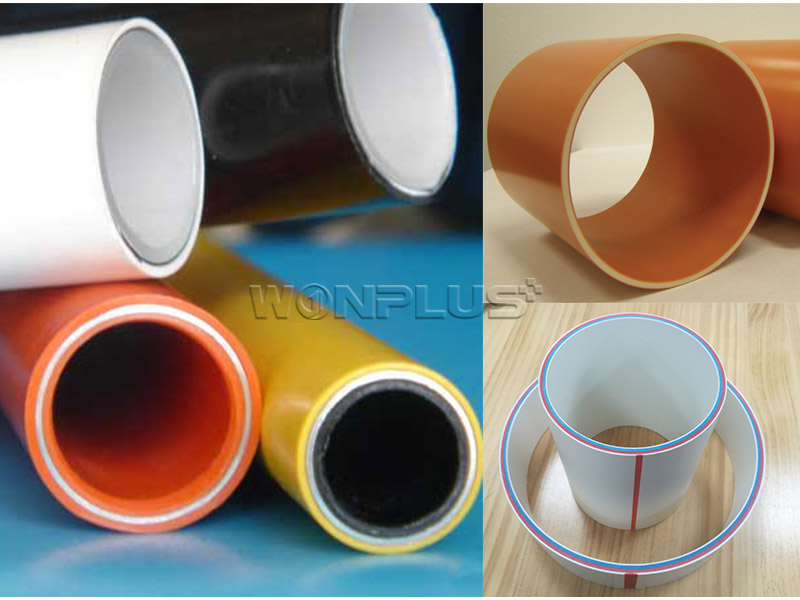

PVC composite pipe is a new type of composite drainage pipe. The pipe is a three-layer co-extrusion composite drain pipe, the inner and outer walls of which are hard PVC, to ensure the enough strength and other physical properties of the pipe. The middle layer is made of special formula PVC, the relative density is 0.7-0.9g/cm3, and the structure of the layer is micro closed pore. This kind of special structure cleverly uses the principle of type I structure in mechanics of materials. It can be observed that the intermediate interlayer is soft colloid, which not only has all the advantages of PVC (empty wall) pipe, but also has the advantages of sound insulation, heat insulation, shock resistance, impact resistance, light weight and low price over the solid wall pipe.
HDPE multi layers co-extrusion pipe production line machine is used to make special application pipeline, the structure could be AB, ABA,ABC and so on. Multi-layer HDPE pipe can be lined with a highly abrasion resistant inner layer for moving materials such as mining slurry or pumping sands during dredging operations.
Equipped with relevant mould, the automatic belling machine could bell the plastic pipe into U type and R type automatically.
It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers. Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
PVC profiles such as window & door profiles, PVC window sills, etc.; WPC profiles such as decking, door panels, kitchen, etc. According to customer’s requirements, most suitable screws can be made so as to make best plasticity state and material quality. High plasticity state, low power consumption, high cost performance.
PVC four outlet pipe extrusion line has the model of 16-32mm four outlet and 32-63mm four outlet, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
20-63mm PE PPR pipe extrusion line is a small size production line, normally equipped with pipe coil winder, widely used to irrigation and drinking water supply. According to customer’s required, can make multilayers pipe, the structure could be AB, ABA, ABC and so on.
800-1600mm HDPE pipe extrusion line is a large size pipe production line.High capacity extruder with stable die and downstream, together with Gravimetric system and Siemens PLC, the pipe production efficiency is super high. More and more big size pipes are widely used in public project, for water supply&discharge, gas transport, etc.
Parallel twin screw extruder is a kind of equipment for extruding PVC powder, PVC wood (WPC) powder, or PE wood pallets, using different kind of mould and auxiliary machine, can produce different kinds of PVC pipes, profile, panel, sheet, roofing, flooring, board and granules.
