screw extruder machine
Products

HDPE multilayer pipe extrusion line

HDPE multi layers co-extrusion pipe production line machine is used to make special application pipeline, the structure could be AB, ABA,ABC and so on. Multi-layer HDPE pipe can be lined with a highly abrasion resistant inner layer for moving materials such as mining slurry or pumping sands during dredging operations.

  • Brand:

    WONPLUS
  • Item NO.:

    MULTI-SJ+GF
  • Payment:

    T/T, L/C
  • Product Origin:

    Kunshan city, China
  • Shipping Port:

    Shanghai port
  • Lead Time:

    60-75 days
  • Product Detail

Equipment Composition:

Single Screw Extruder (2 or 3 sets) + Co-extrusion multi layers pipe mould + Vacuum calibration tank + Water cooling spraying tank + Caterpillar type Hauler + Dust-free Cutter + Stacker/Winder


Advantage:

● The extruder adopts large L/D ratio screw and AC motor for extruder to realize high production and energy saving.

● The die body adopts independent spiral mechanism of each layer to ensure the uniformity, and the exhaust mechanism ensures the stable melt temperature under high production and reduces the cooling length.

● The hauling adopts servo control to ensure stable production in large speed range.

● Adopt Dust-free cutting mechanism, clear and accurate fixed length, beautiful incision.

● Production data acquisition and analysis system is avaible selected to realize transparent production management.


Technical Parameters:

Model

Pipe Range

(mm)

Max Output

(kg/h)

Max Speed

(m/min)

Co-extrusion

WON-63PE

Ø16-Ø63

300

25

2-4 Layer

WON-110PE

Ø20-Ø110

300

14

2-4 Layer

WON-160PE

Ø40-Ø160

600

8

2-4 Layer

WON-250PE

Ø50-Ø250

600

6.5

2-4 Layer

WON-450PE

Ø110-Ø450

820

4.5

2-4 Layer

WON-630PE

Ø160- Ø630

1150

1.6

2-4 Layer

WON-800PE

Ø280-Ø800

1150

1

2-4 Layer

WON-1000PE

Ø400-Ø1000

1400

0.8

2-4 Layer

WON-1200PE

Ø500-Ø1200

1400

0.6

2-4 Layer

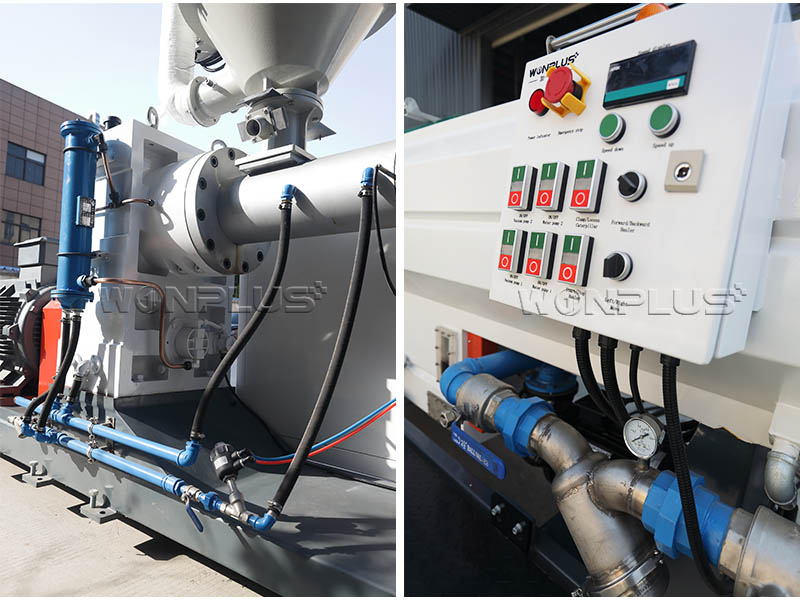

Extrusion Line Details:



Application:

Multi-layer HDPE pipe can be lined with a highly abrasion resistant inner layer for moving materials such as mining slurry or pumping sands during dredging operations.
