PVC single outlet pipe extrusion line has the model of 63-160mm,75-250mm, 75-315mm, 160-400mm, 315-630mm and 500-800mm, which can produce High quality uPVC pipes with high speed. The PVC pipe is widely used to electric conduit, water discharge, water supply and so on. High speed PVC pipe extrusion line is a high efficient and output machine.
Brand:
WONPLUSItem NO.:
SJZ+GF1Payment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment Composition:

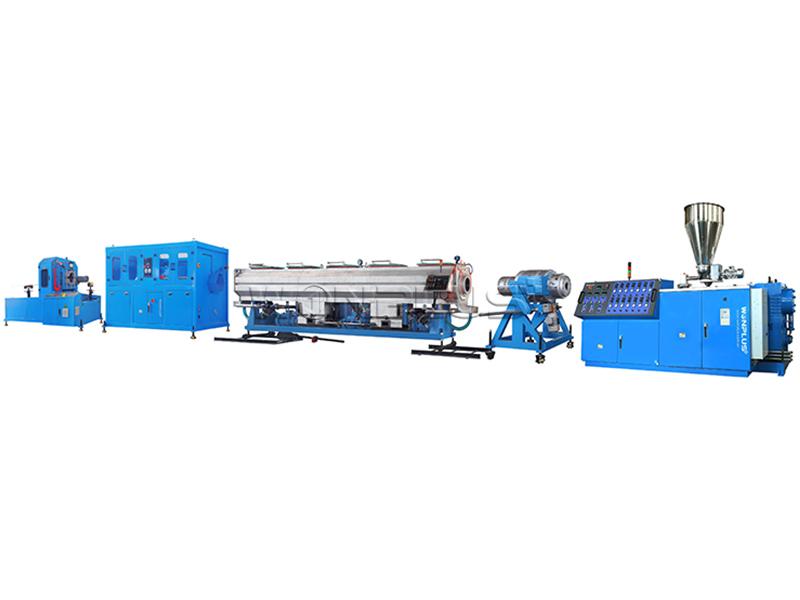

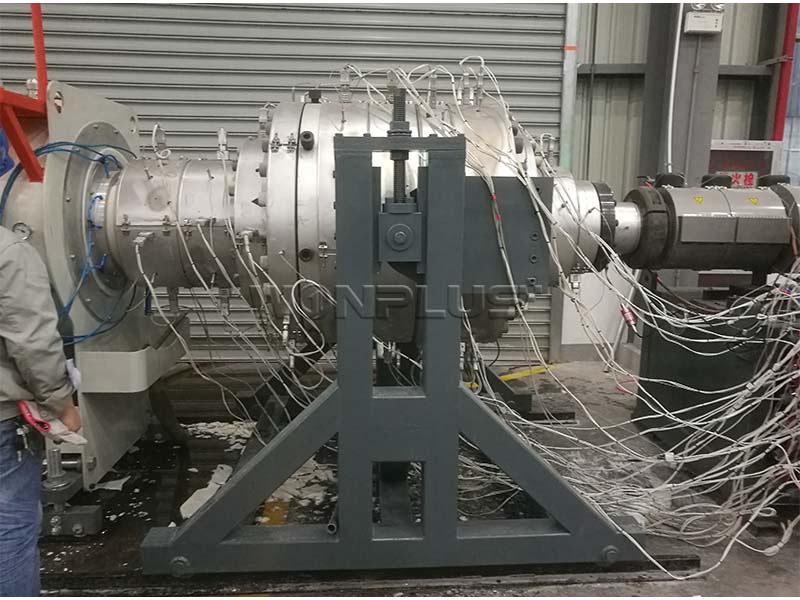

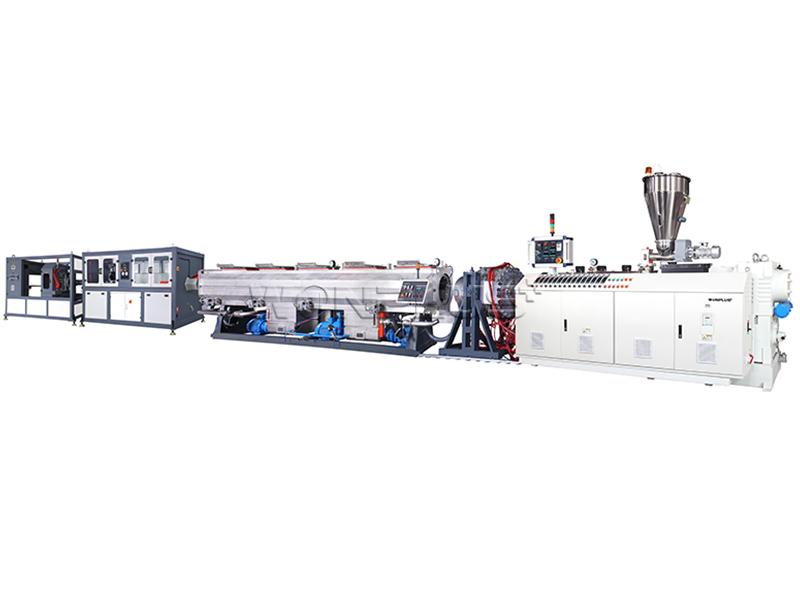

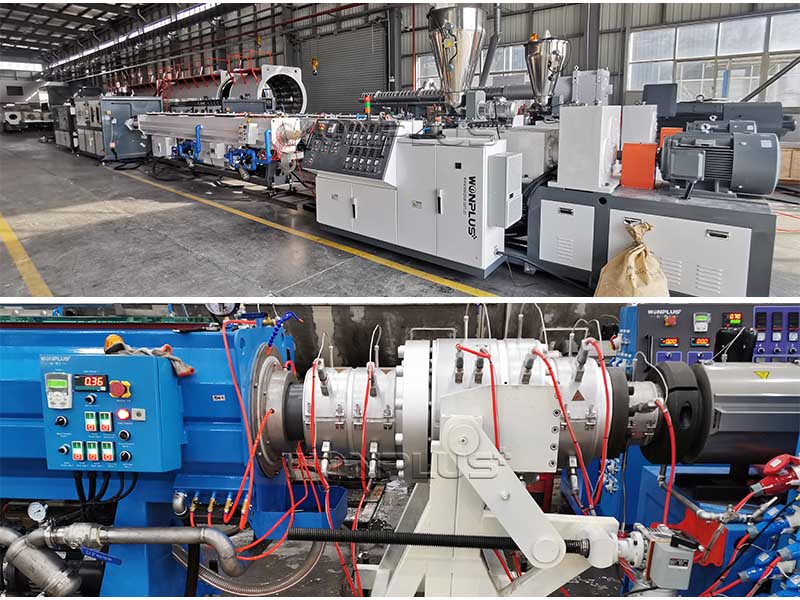

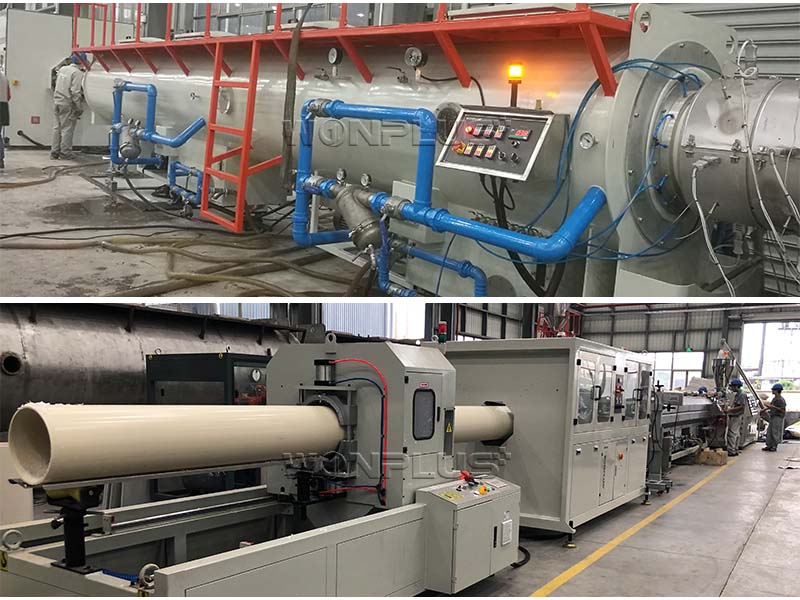

Conical Twin Screw Extruder + PVC Pipe Mould + Vacuum calibration tank + Water cooling spraying tank (optional) + Caterpillar type Hauler + Dust-free Cutter + Stacker
Features:

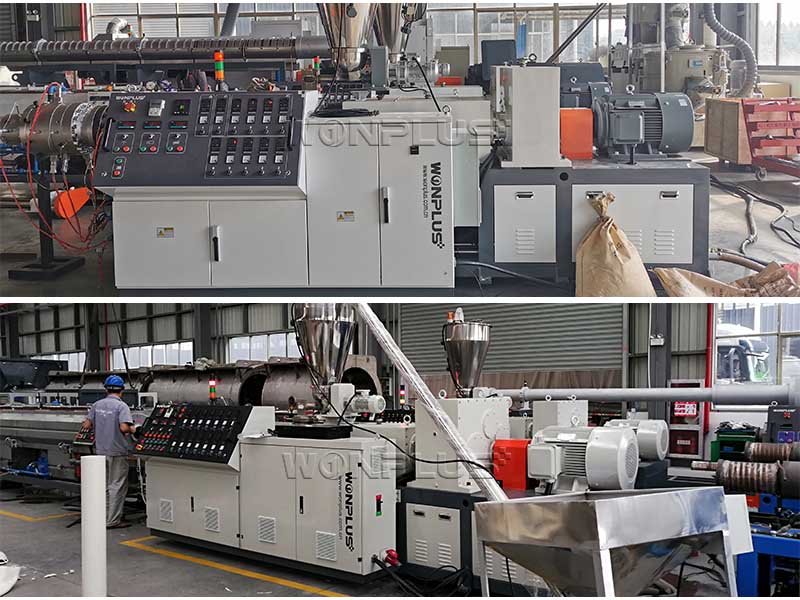

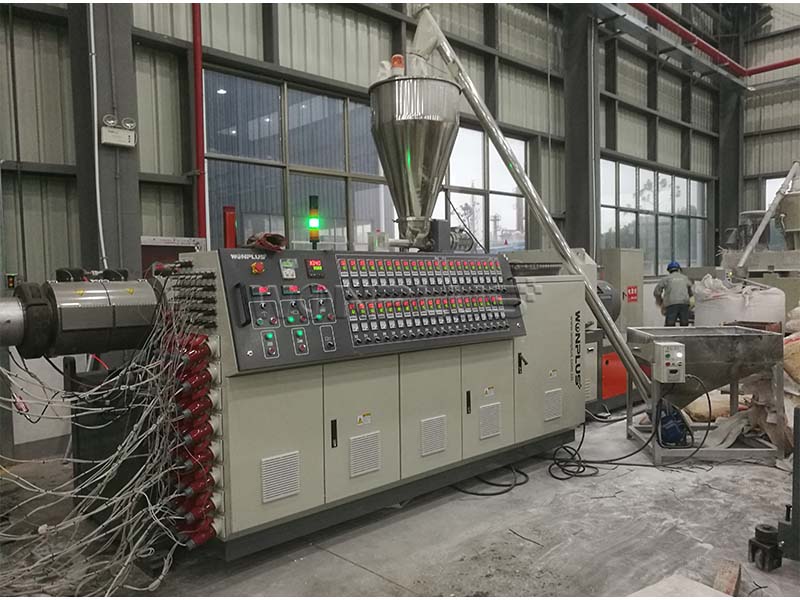

● Extruder controlled by Digital display control instrument, or PLC control system with HMI touch screen control panel.
● Vertical type integrated gearbox, with high torque, accuracy and durable performance.
● Bimetallic screw and barrel; Screw inner temperature controlle
315-630mm PVC pipe extrusion line
● High production capacity: Under the premise of ensuring product quality, the four outlet PVC pipe extrusion line can reach about 20000kg per 24 hours.
● Small water and air consumption: WONPLUS optimized cooling water channel and air circuit make the water and air consumption reduce at least 25% than traditional type.

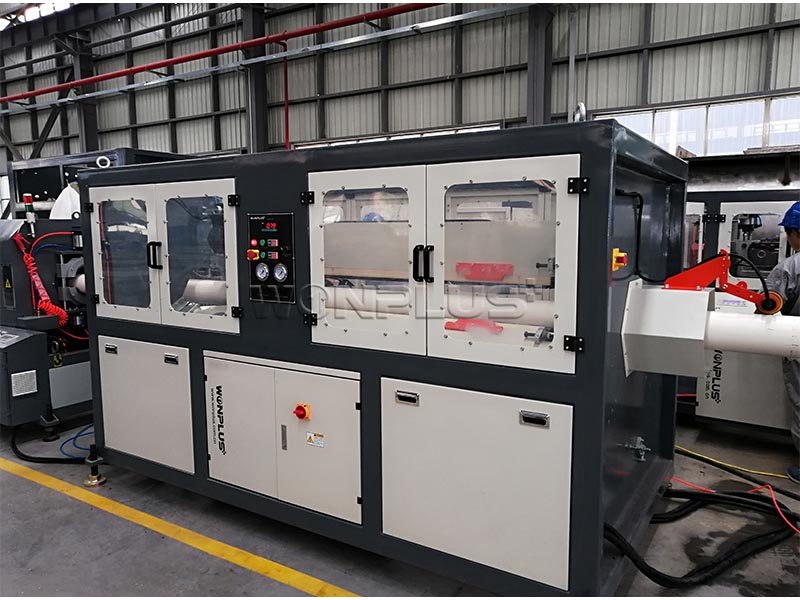

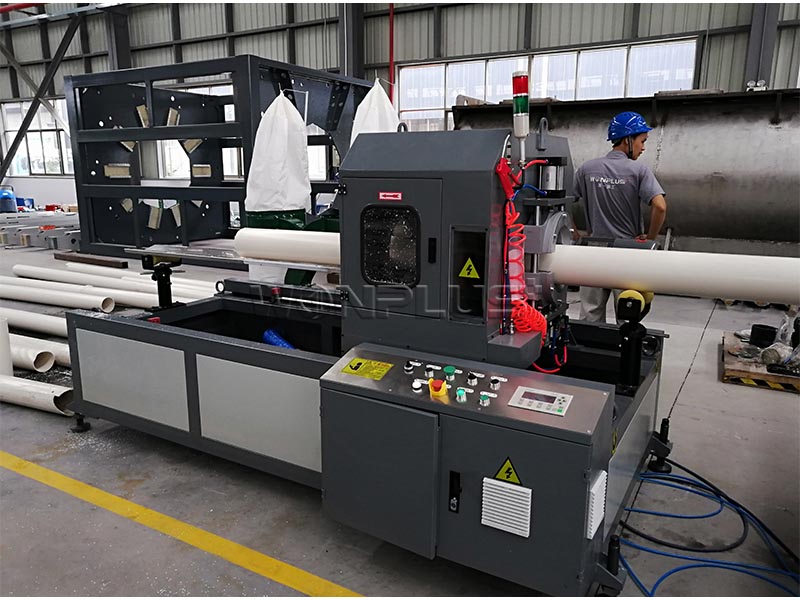

● Low noise pollution: WONPLUS machine use Planetary cutter, almost none sound while working.
● Low dust pollution: WONPLUS Planetary cutter use Alloy saw blade, with dust absorb device, almost none dust while working.
Technical Parameters:
63-160mm PVC pipe extrusion line
|
Extrusion System |
|||||||
|
Extruder |
Model |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
|||
|
Conical twin screw extruder |
SJZ-65/132 |
37kw |
34.7rpm |
300-400 |
|||
|
Downstream Equipment (63-160mm Single outlet) |
|||||||
|

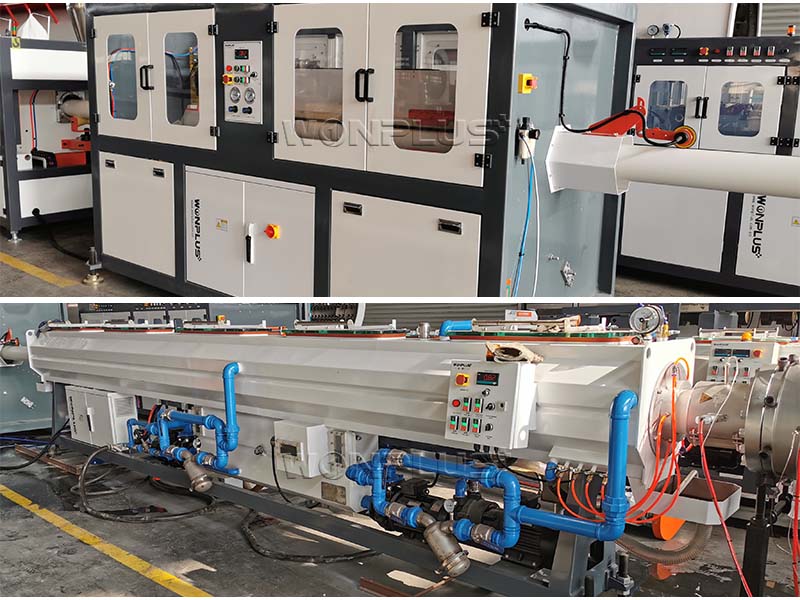

Vacuum calibration tank |
Hauler |
Cutter |
Stacker |
||||
|
Length: 6000mm |

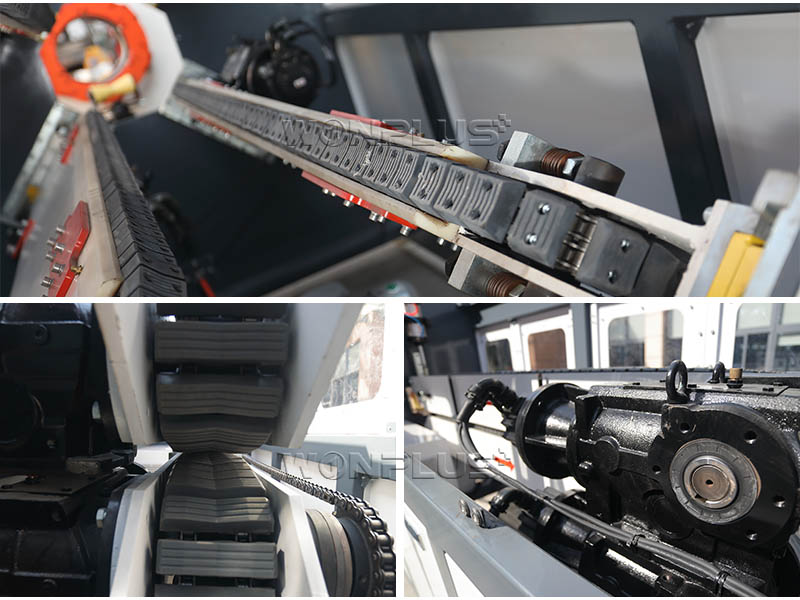

3 pedrail type |
Planetary cutting |
Length:6000mm |
||||
|
Vacuum pump:4kw*1set Vacuum pump:4kw*2sets |
Servo motor 0.85kw*3sets |
Cutting power: 2.2KW |
|||||
|
0-16m/min |
|||||||
75-250mm PVC pipe extrusion line
|
Extrusion System |
|||||||
|
Extruder |
Model |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
|||
|
Conical twin screw extruder |
SJZ-80/156 |
55kw |
34.7rpm |
400-500 |
|||
|
Downstream Equipment (75-250mm) |
|||||||
|
Vacuum calibration tank |
Hauler |
Cutter |
Stacker |
||||
|
Length: 6000mm |
3 pedrail type |
Planetary cutting |
Length:6000mm |
||||
|
Vacuum pump:5.5kw*1set Vacuum pump:5.5kw*2sets |
Servo motor 0.85kw*3sets |
Cutting power: 2.2KW |
|||||
|
0-6.4m/min |
|||||||
160-400mm PVC pipe extrusion line
|
Extrusion System |
|||||||
|
Extruder |
Model |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
|||
|
Conical twin screw extruder |
SJZ-92/188 |
110kw |
34.7rpm |
650-750 |
|||
|
Downstream Equipment (160-400mm) |
|||||||
|
Vacuum calibration tank |
Hauler |
Cutter |
Stacker |
||||
|
Length: 6000mm |
4 pedrail type |
Planetary cutting |
Length:6000mm |
||||
|
Vacuum pump:5.5kw*2sets Vacuum pump:5.5kw*2sets |
Servo motor 0.85kw*4sets |
Cutting power: 3KW |
|||||
|
0-6.4m/min |
|||||||
315-630mm PVC pipe extrusion line
|
Extrusion System |
|||||||
|
Extruder |
Model |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
|||
|
Conical twin screw extruder |
SJZ-92/188 |
110kw |
34.7rpm |
650-750 |
|||
|
Downstream Equipment (315-630mm) |
|||||||
|
Vacuum calibration tank |
Hauler |
Cutter |
Stacker |
||||
|
Length: 8000mm |
6 pedrail type |
Planetary cutting |
Length:6000mm |
||||
|
Vacuum pump:7.5kw*2sets Vacuum pump:7.5kw*2sets |
Servo motor 0.85kw*6sets |
Cutting power: 3KW |
|||||
|
0-1.5m/min |
|||||||
500-800mm PVC pipe extrusion line
|
Extrusion System |
|||||||
|
Extruder |
Model |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
|||
|
Conical twin screw extruder |
SJZ-92/188 |
110kw |
34.7rpm |
650-750 |
|||
|
Downstream Equipment (500-800mm) |
|||||||
|
Vacuum calibration tank |
Hauler |
Cutter |
Stacker |
||||
|
Length: 8000mm |
8 pedrail type |
Planetary cutting |
Length:8000mm |
||||
|
Vacuum pump:7.5kw*4sets Vacuum pump:7.5kw*4sets |
Servo motor 0.85kw*8sets |
Cutting power: 4KW |
|||||
|
0-0.8m/min |
|||||||
Extrusion Line Details:
PVC four outlet pipe extrusion line has the model of 16-32mm four outlet and 32-63mm four outlet, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
PVC two outlet pipe extrusion line has the model of 16-63mm,50-110mm and 90-160mm double out, which can produce Two pcs PVC pipes simultaneously. The PVC pipe is widely used to electric conduit, water discharge and so on. Two outlet PVC pipe extrusion line is a high efficient and output machine.
PVC/WPC foamed skinning board has such characteristics as sound proof, sound absorb, heat proof, temperature preservation. It can be aging resistance, static electricity resistance.The product made by this machine group can also be used in making building template, toy building blocks use the board, tray package box, sleeper, outdoor floor, ,garden chair and other outdoor facilities, indicating plate, circulating box, roof beam and others.
PVC two outlet pipe extrusion line has the model of 16-63mm,50-110mm and 90-160mm double out, which can produce Two pcs PVC pipes simultaneously. The PVC pipe is widely used to electric conduit, water discharge and so on. Two outlet PVC pipe extrusion line is a high efficient and output machine.
Pipe laser printer is widely used to print the label on plastic pipes,profile or panels, which is working together with extrusion line.

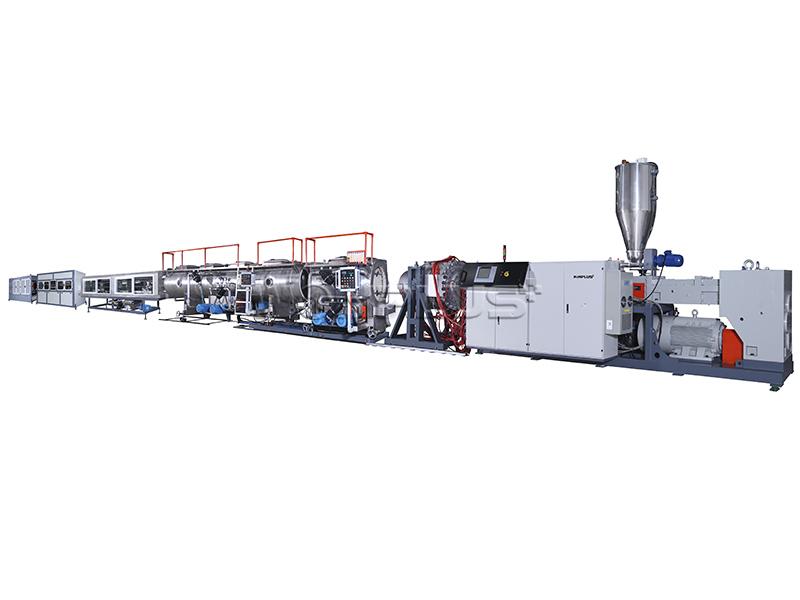

630-1200mm HDPE pipe extrusion line is a large size pipe production line.High capacity extruder with stable die and downstream, together with Gravimetric system and Siemens PLC, the pipe production efficiency is super high. More and more big size pipes are widely used in public project, for water supply&discharge, gas transport, etc.
