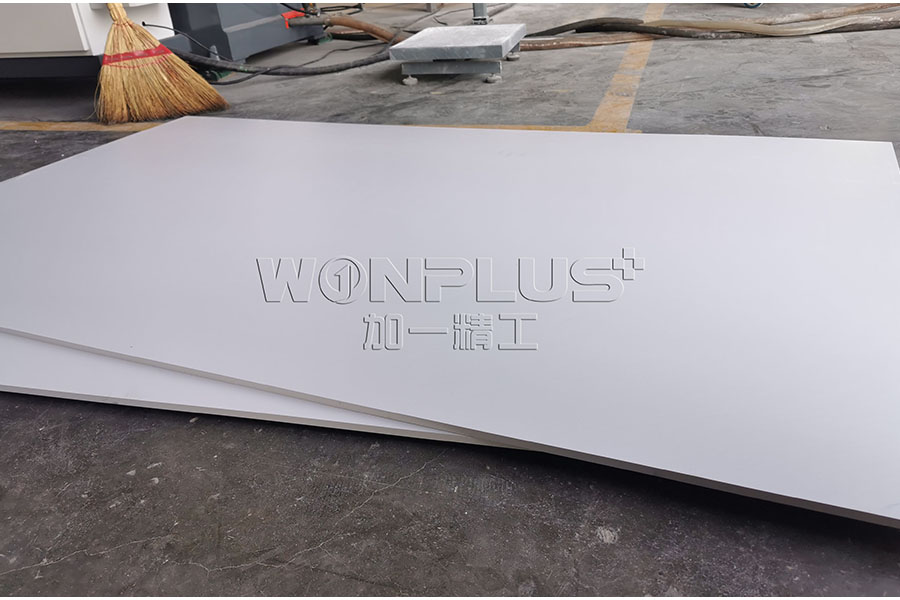

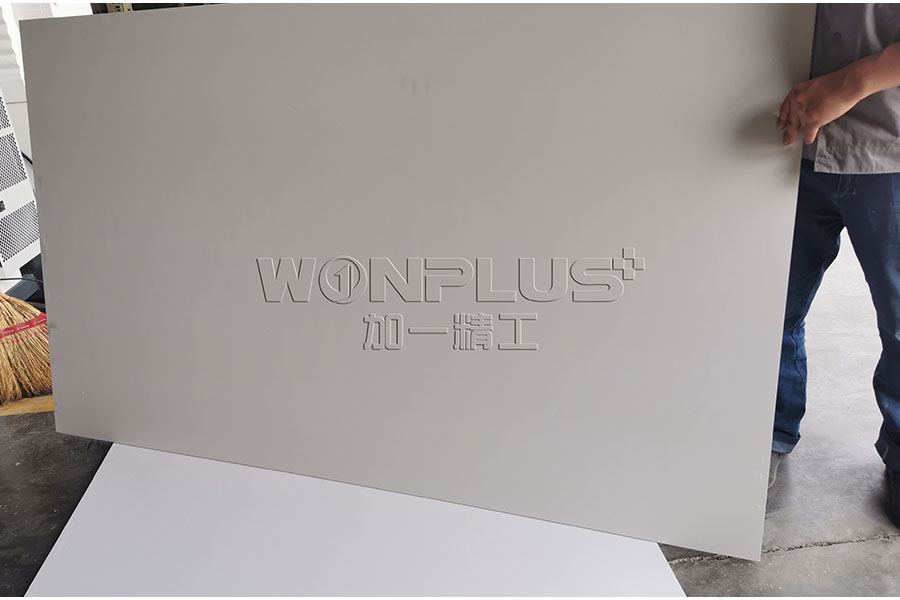

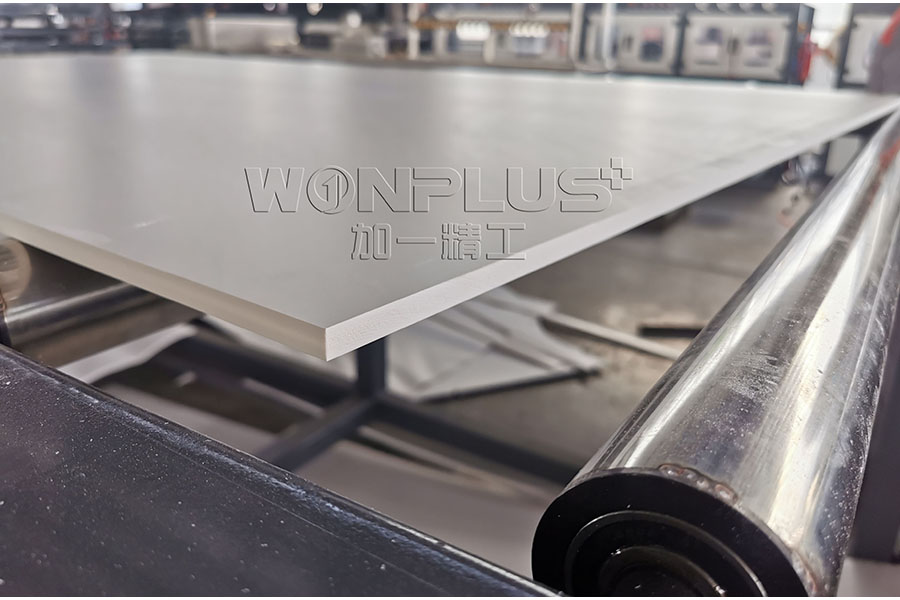

PVC/WPC foamed skinning board has such characteristics as sound proof, sound absorb, heat proof, temperature preservation. It can be aging resistance, static electricity resistance.The product made by this machine group can also be used in making building template, toy building blocks use the board, tray package box, sleeper, outdoor floor, ,garden chair and other outdoor facilities, indicating plate, circulating box, roof beam and others.
Brand:
WONPLUSItem NO.:
SJZ+YFPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment composition:

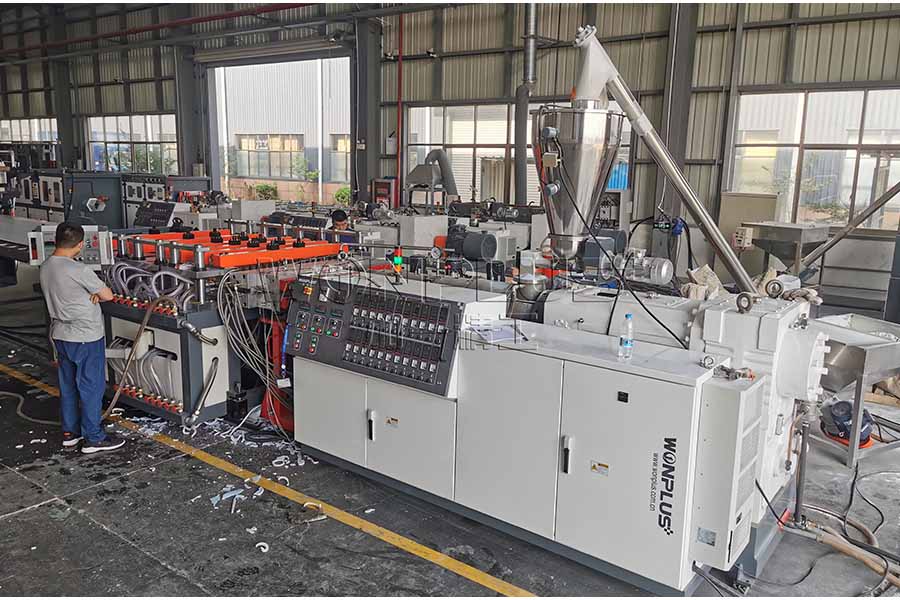

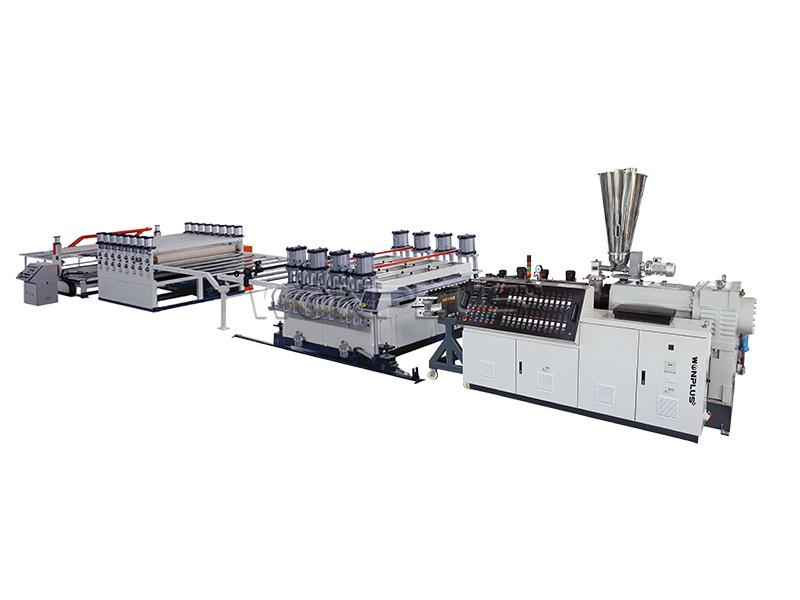

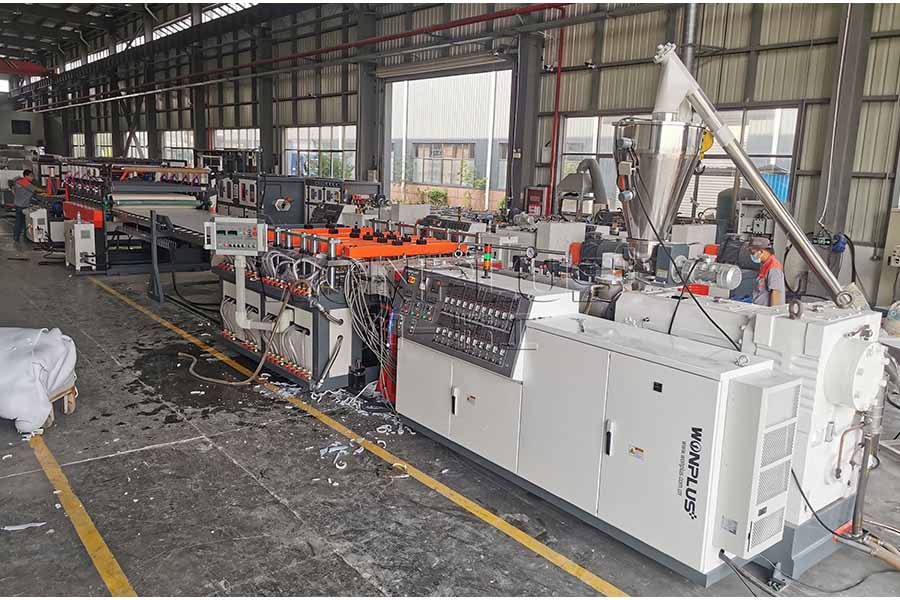

Conical Twin Screw Extruder + Foam Board Mould + Calibration Table + Cooling Frame + Hauler + Cutter + Stacker
Feature:
● High output and stable running performance.
● PLC automatic control system and HMI touch screen control panel.
● Automatic mould temperature control system.
● Gravimetric dosing system.

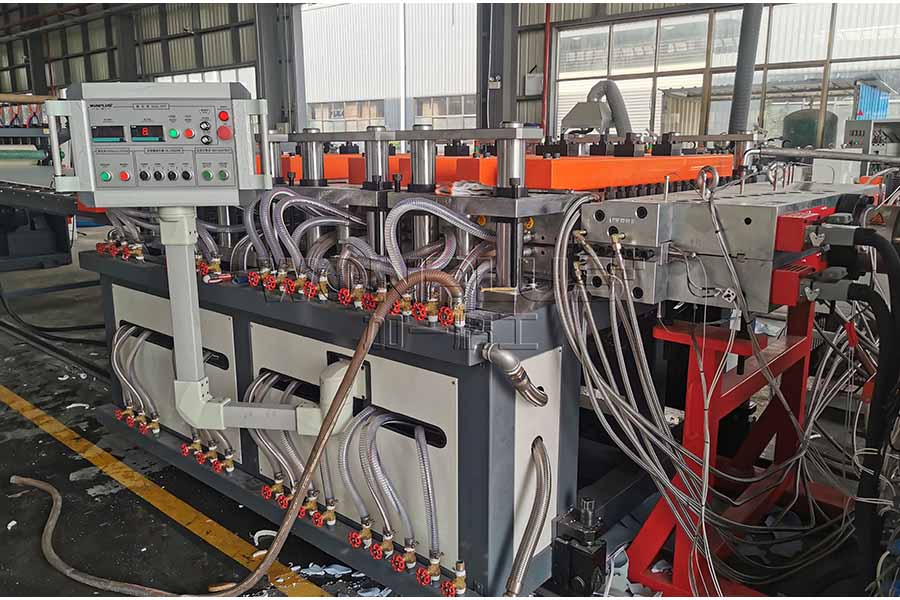

● Mould : The special flow channel structure of skinning foam board is adopted to make the material extruded and foamed evenly.

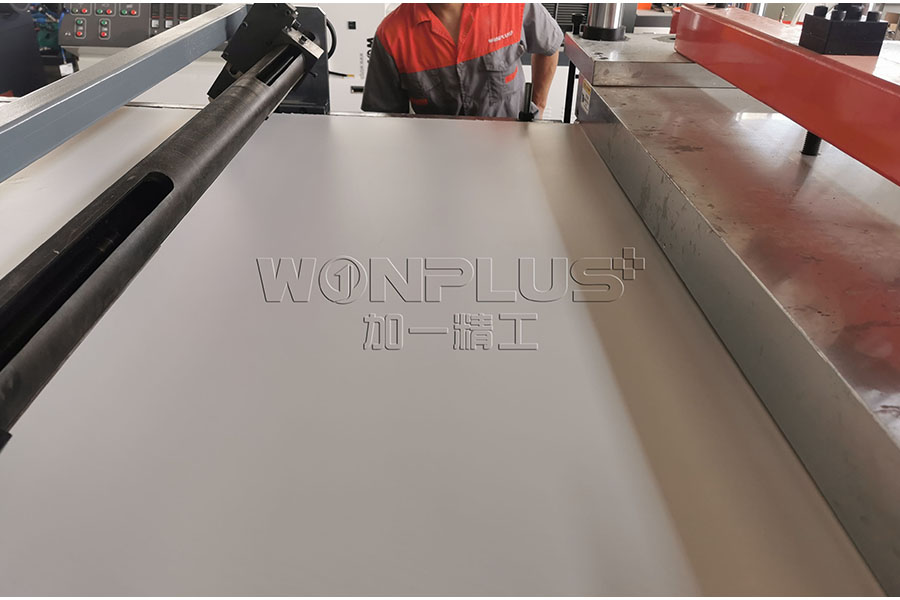

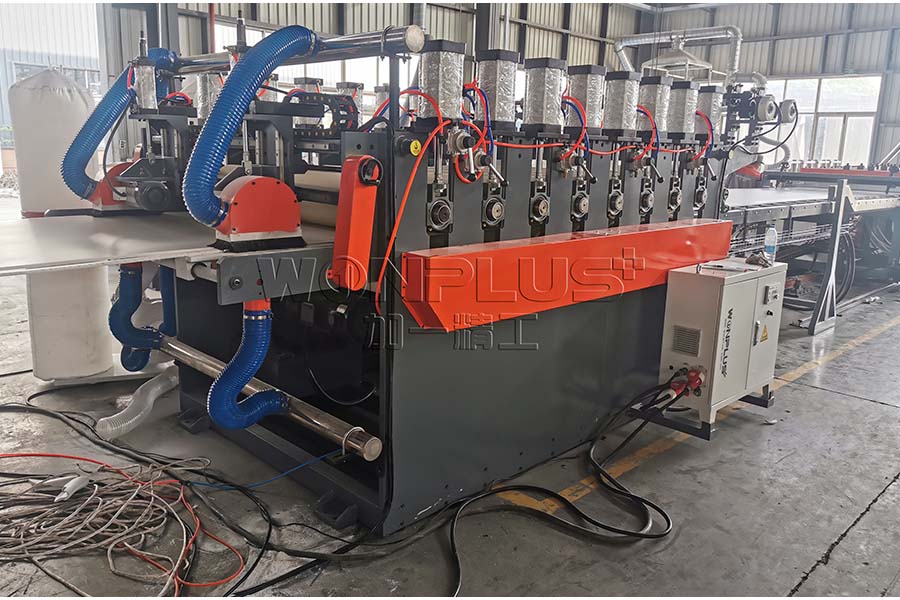

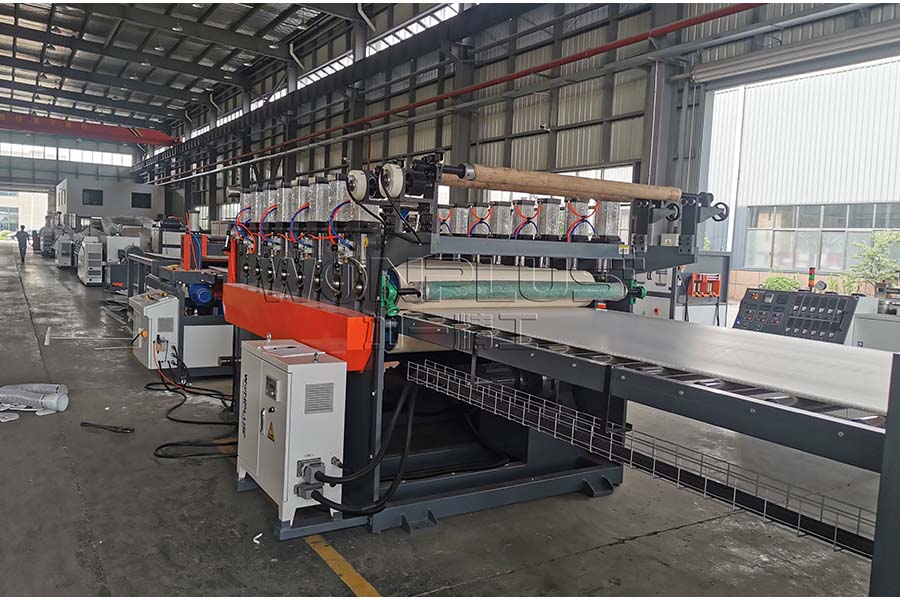

● Calibration Table : Adopt the pressure plate structure, the cylinder control, make the plate size accuracy control simple. The design of the cooling system pipeline makes the cooling of the plate more uniform and rapid shaping.

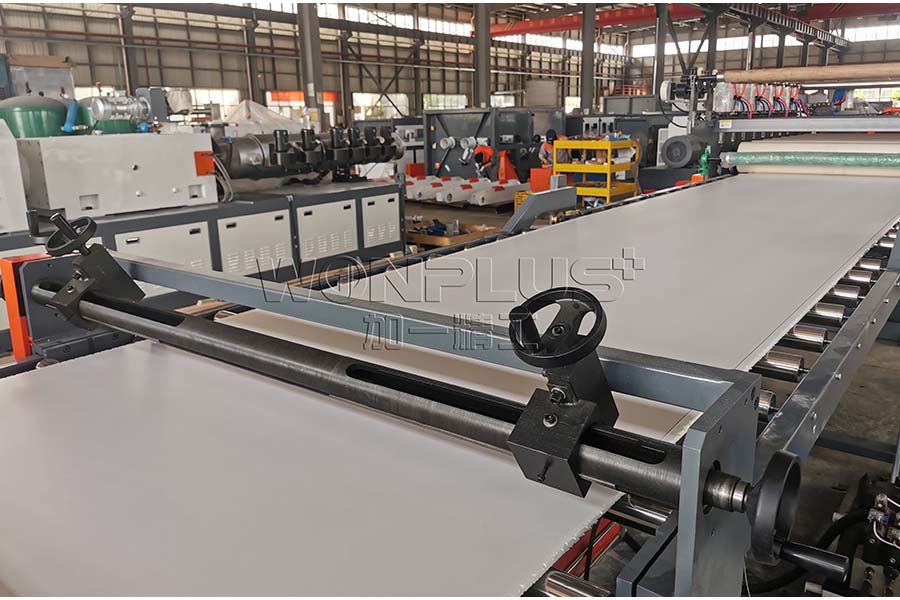

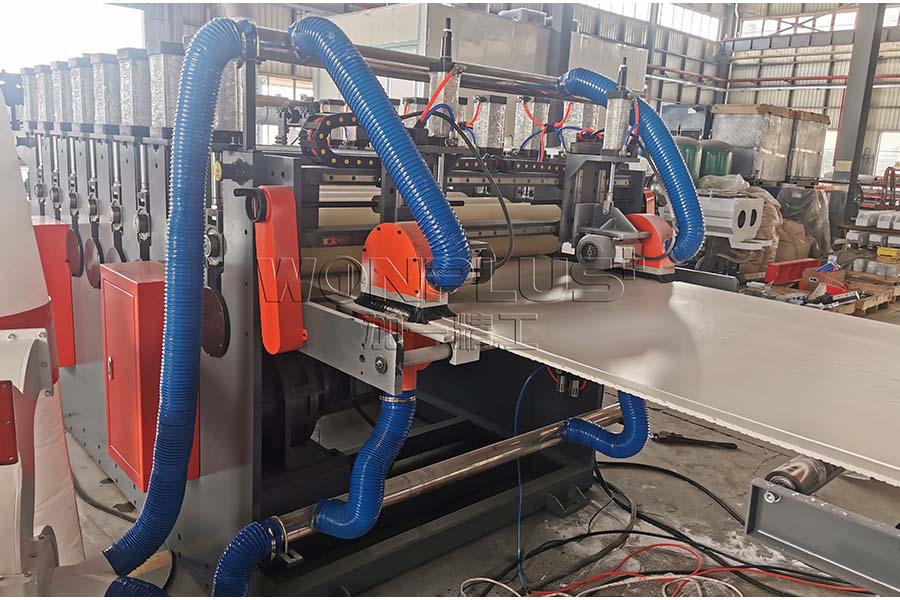

● Hauler and Cutter System: The roller type combined hauler is used to make the traction measurement and adjustment simple, the roller hauler and the cutter are controlled synchronously, and the cut of the plate is straight.
Technical Parameters:
|
PRODUCT NAME |
SEMI-SKINNING FOAM BOARD |
SEMI-SKINNING FOAM BOARD |
SKINNING FOAM BOARD |
|
EXTRUDER |
SJZ-80/156 |
SJZ-92/188 |
SJZ-80/156+SJZ-65/132 |
|
MAIN MOTOR POWER |
55KW / 75KW |
110KW |
75KW +37KW |
|
PRODUCT WIDTH |
1220MM |
1560MM |
1220MM |
|
PRODUCT THICKNESS |
5-20MM |
8-18MM |
8-20MM |
|
DOWNSTREAM |
YF1200 |
YF1560 |
YF1220 |
|
Downstream Equipment |
|||
|
Calibrator Table 1 set |
Cooling Frame 1 set |
Hauler & Cutter 1 set |
Stacker 1 set |
|
Length 2.5M Water Pump : 4KW *1set |
Length 3.5M |
Hauler : Roller Type, 7.5KW Power 0-2.5m/min Cutter : 5.5KW power |
Length : 2M |
