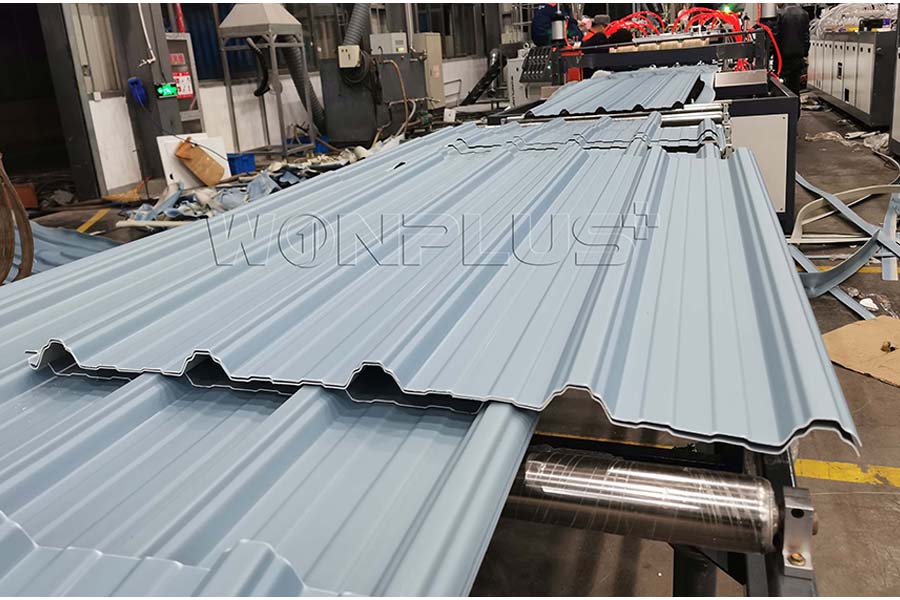

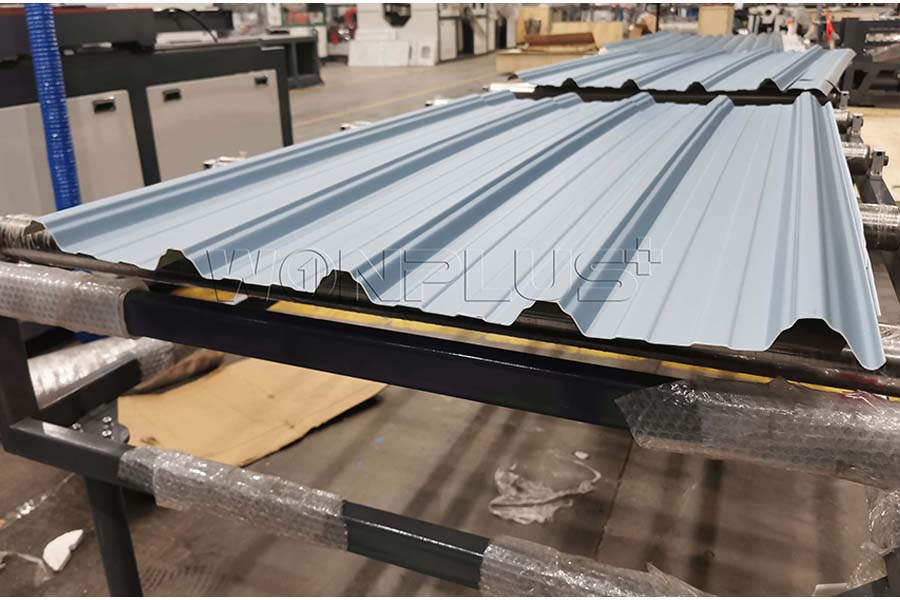

PVC flooring sheet is widely used as factory roof, warehouse roof, agricultural market roof etc.The roofing sheet long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof, noise isolation.Easy installation and low transportation cost.
Brand:
WONPLUSItem NO.:
SJZ+SJ+YF1220Payment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment composition:

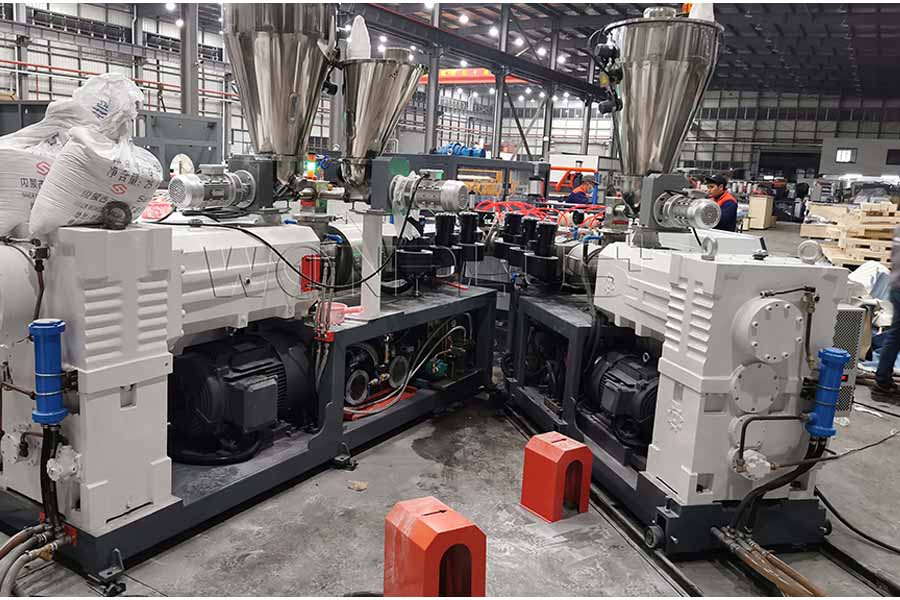

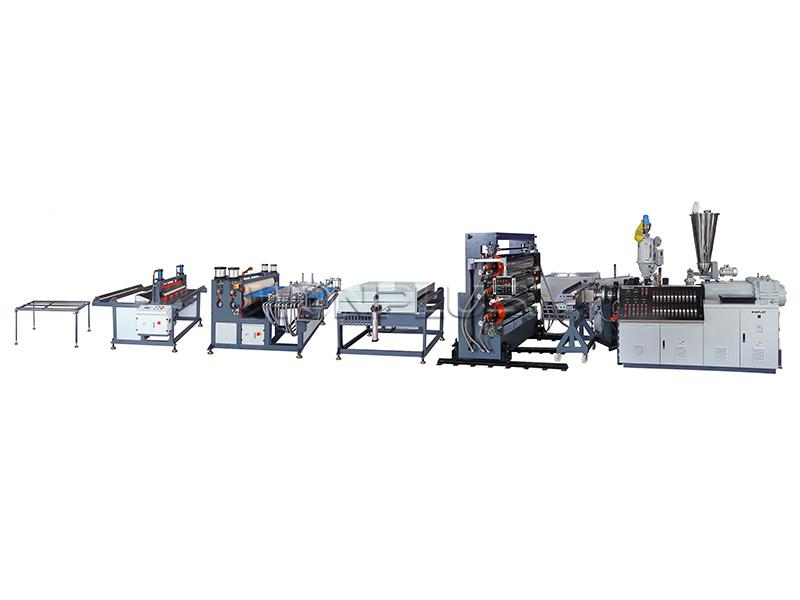

Conical Twin Screw Extruder + Roofing Sheet Mould + Vacuum calibration + Hauler + Cutter + Stacking Table
Feature:
● High output and stable running performance.

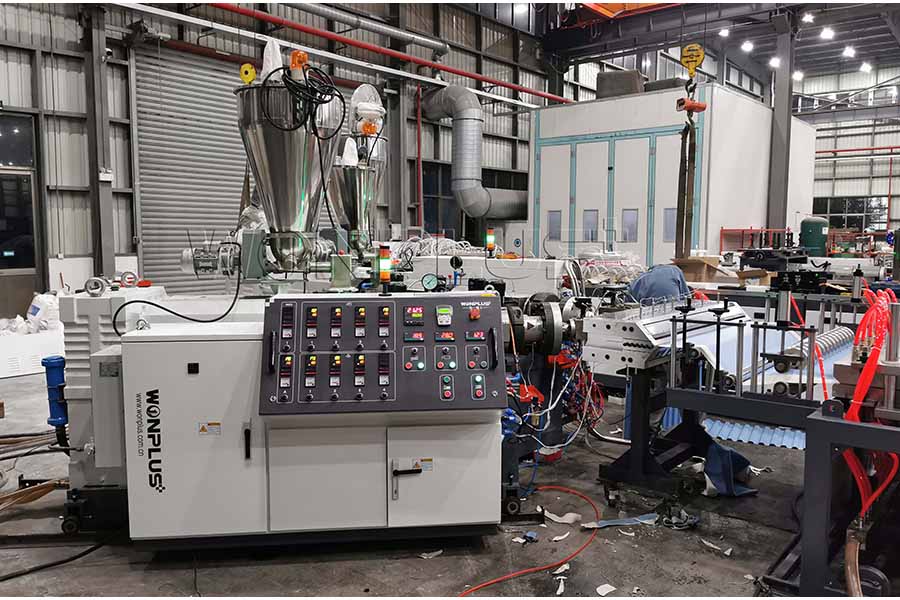

● PLC automatic control system and HMI touch screen control panel.
● Automatic mould temperature control system.
● Gravimetric dosing system.

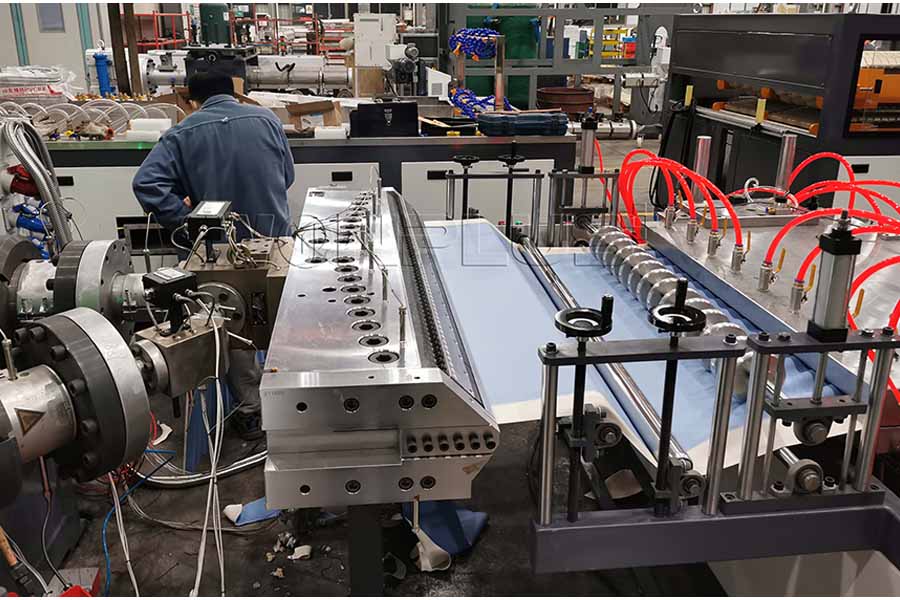

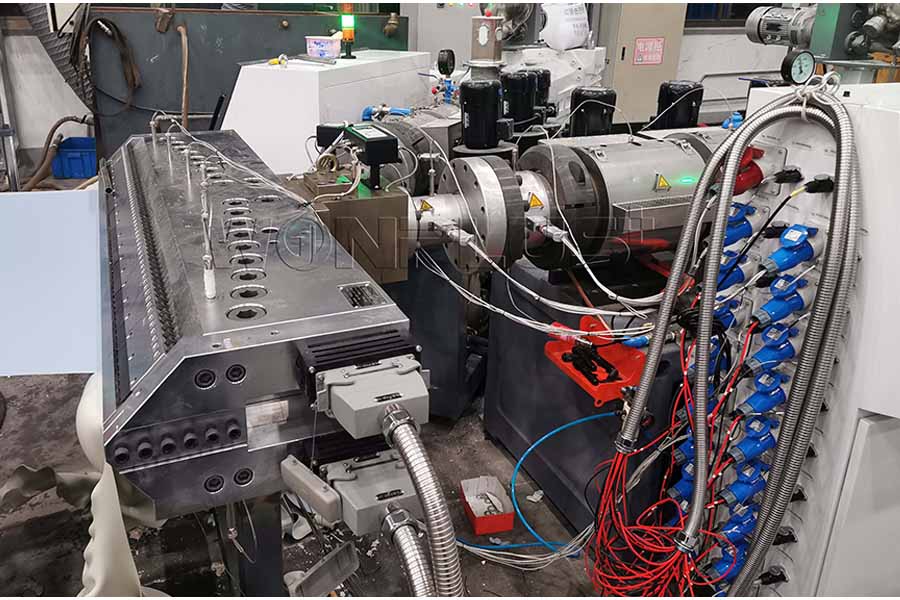

● Mould: The special flow channel structure of roofing sheet is adopted to make the material extruded evenly.
● Calibration Table : Adopt the pressure plate structure, the cylinder control, make the roofing sheet size accuracy control simple. The design of the cooling system pipeline makes the cooling of the roofing sheet more uniform and rapid shaping.

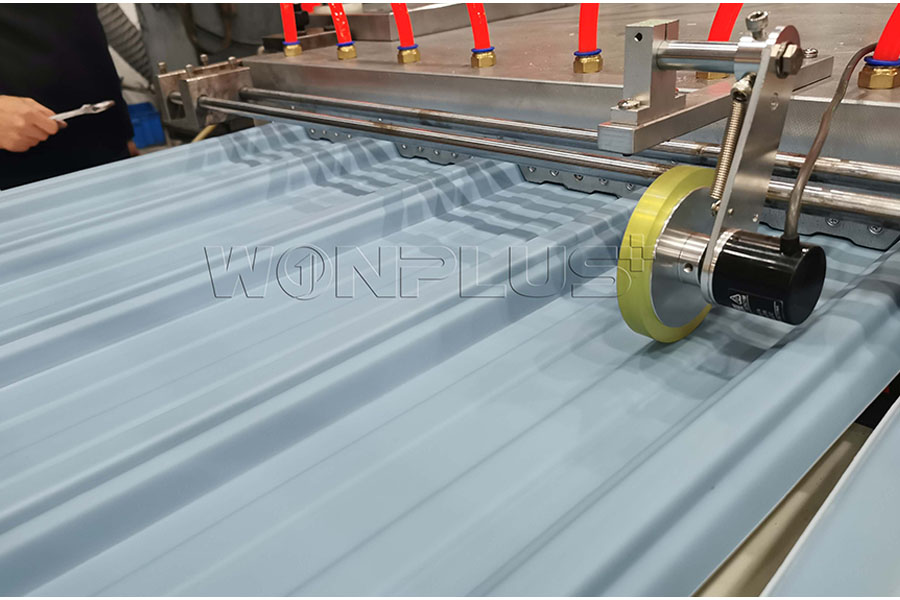

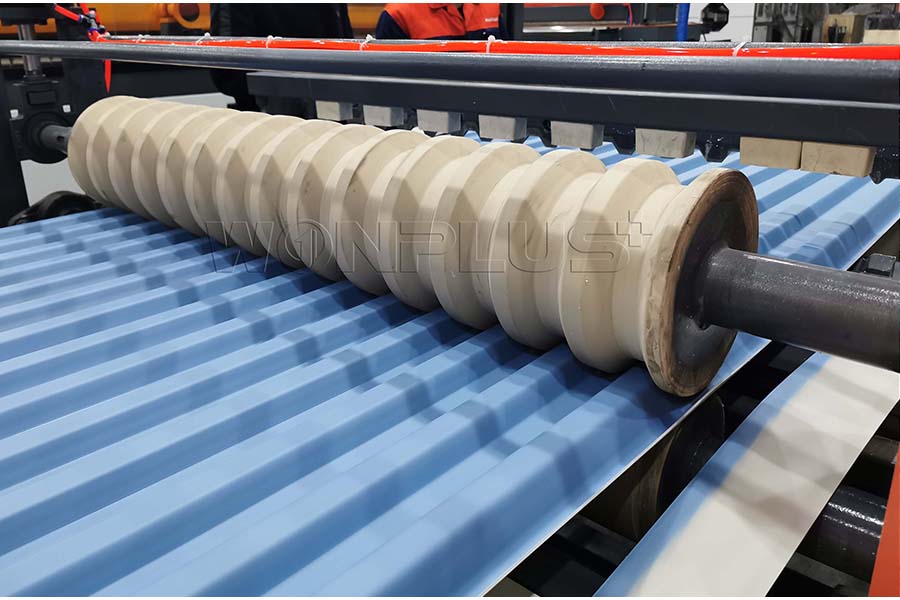

●Hauler and Cutter System: The roller type combined hauler is used to make the traction measurement and adjustment simple, the roller hauler and the Pneumatic cutter are controlled synchronously, and the cut of the plate is straight.
Technical Parameters:
PRODUCT
NAME
PVC
Solid Roofing Sheet
PVC
Hollow Roofing Sheet
EXTRUDER
SJZ-80/156
SJ-45/25
SJZ-92/188
SJ-50/25
MAIN
MOTOR POWER
55KW
7.5
KW
110KW
7..5
KW
PRODUCT
WIDTH
800mm
- 1220MM
PRODUCT
THICKNESS
1MM
- 3MM
6MM
- 20MM
Downstream Equipment
Vacuum
calibration
1
set
Hauler
1
set
Cutter
1
set
Stacker
1
set
Vacuum
Pump : 11 KW *2 PCS, 7.5KW *2PCS
Motor
: 7.5KW
Motor
: 2.2KW
Length6
M
