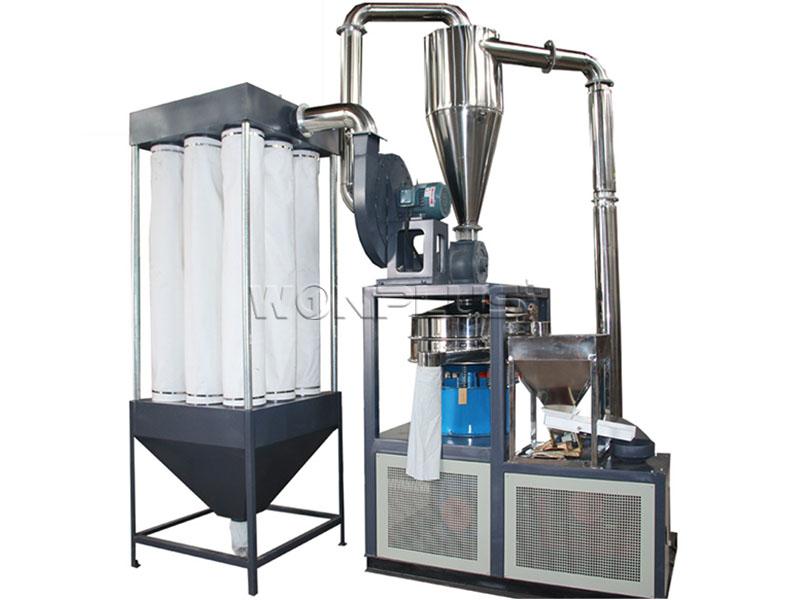

SMP series pulverizer belongs to disc-type pulverizer series, with it’s disc diameter from 350mm-800m. It is widely used in grinding materials with moderate hardness. It is applied for process materials such as PE, PVC, PP, ABS, PA, EVA, PET, PS, PPS, EPS, PC, Styrofoam, Cow leather, etc.
Brand:
WONPLUSItem NO.:
SMPPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysBrief:
Plastic PVC pulverizer is utilized to grind crushed PVC scraps into fine powder for recycling production waste in rigid PVC plastic industry, such as PVC pipe, PVC profile, PVC ceiling, PVC wall panel. the model available are SMP400,SMP500,SMP600,SMP800, the output capacity of pulverizer from 50kg/h to 380kg/h. and special requirement on pulverizer can be customized.
Features and Application:
Waste plastic grinding granulator machine is used in waste plastic recycling, extrudering plastic recycling and plastic pipe crush recycling.
1. compared with other grind machine, it has large output with the same energy consumption, saving energy.
2. equipped with dust collecting device can reduce dust pollution
3. adopting discharge with airlock can reduce the labor intensity of operators
4. the cover plate of the main machine can be opened ,it is convenient for maintenance and replacement of the knife.
Machine Advantage:
1. This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature
2. A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials
3. This machine has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries
4. This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again, high-efficiency dust collector system. Automatic and space saving.
5. The sword adopted imported stainless steel, durable, can work continuously
6. Knife can be adjusted easily, easily maintained and control
7. Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal using.
Technical Specifiation:
|
Model |
SMP-500 |
SMP-600 |
SMP-800 |
|
Motor power (kw) |
37kw |
55kw |
75kw |
|
Blow power (kw) |
3kw |
5.5kw |
11kw |
|
Voltage |
380V, 50Hz (or according to customer) |
380V, 50Hz (or according to customer) |
380V, 50Hz (or according to customer) |
|
Total power |
41kw |
52kw |
90.5kw |
|
Blade Dia. |
500mm |
600mm |
800mm |
|
Feeding material size |
Below 10mm |
Below 10mm |
Below 10mm |
|
Output size |
40-80mesh |
40-80mesh |
40-80mesh |
|
Vibration model |
ZDS-800 |
ZDS-1000 |
ZDS-1200 |
|
Capacity |
200-300kg/h |
300-500kg/h |
500-600kg/h |
|
Machine size(mm) (L*W*H) |
2500*2000*3000mm |
3200*2600*3200mm |
3500*2400* |
