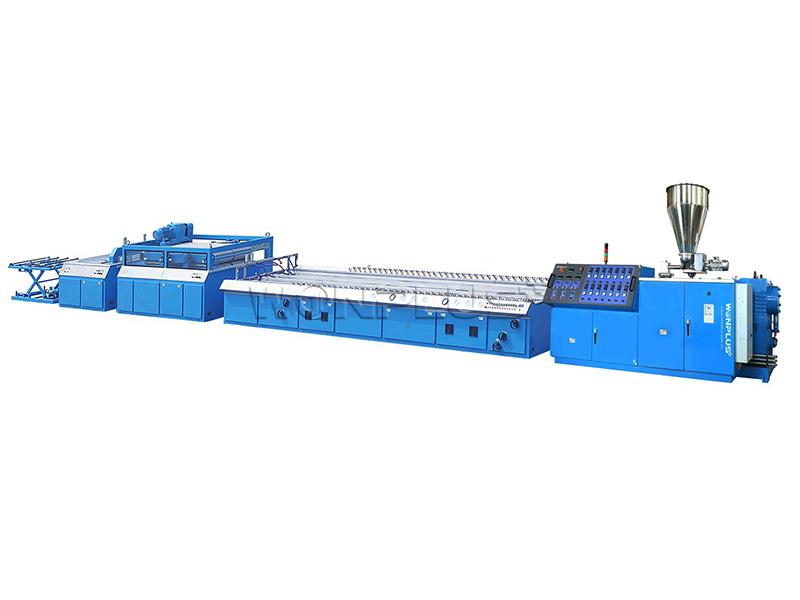

PVC/WPC panel extrusion line

PVC panel such as PVC door, PVC window sills, etc.; WPC profiles panel such as decking, door panels, kitchen, etc.According to customer’s requirements, most suitable screws can be made for best plasticity state and material quality.High plasticity state, low power consumption, high cost performance.

  • Brand:

    WONPLUS
  • Item NO.:

    SJZ+YF600-1250
  • Payment:

    T/T, L/C
  • Product Origin:

    Kunshan city, China
  • Shipping Port:

    Shanghai port
  • Lead Time:

    60-75 days
  • Product Detail

Equipment composition:

Conical Twin Screw Extruder + Panel Mould + Vacuum Calibration Table + Hauler + Cutter + Stacking Table



Features:

● PLC control system and HMI touch screen control panel, or Digital display control instrument

● Vertical type integrated gearbox, with high torque, accuracy and durable performance.

● High flexibility in raw material combinations.

● Speed adjustment by inverter.

● The haul-off unit has applied unique lift technique of our ONEPLUS CO., good reliability and large pulling force.

● Special cutter design for Panel.

● Movement speed and drawing speed of cutting machine keep synchronous. All movements are controlled by Siemens PLC, the design is reasonable, the operation is stable, also it can conduct automatic cutting with fixed length.



Technical Parameters:

Downstream

YF600

YF800

YF1000

YF1250

Products

Door Panel, Ceiling Panel, Window Stills, Kitchen, Etc.

Downstream Power

40

72

143

143

Table Length

6

8

8

8
