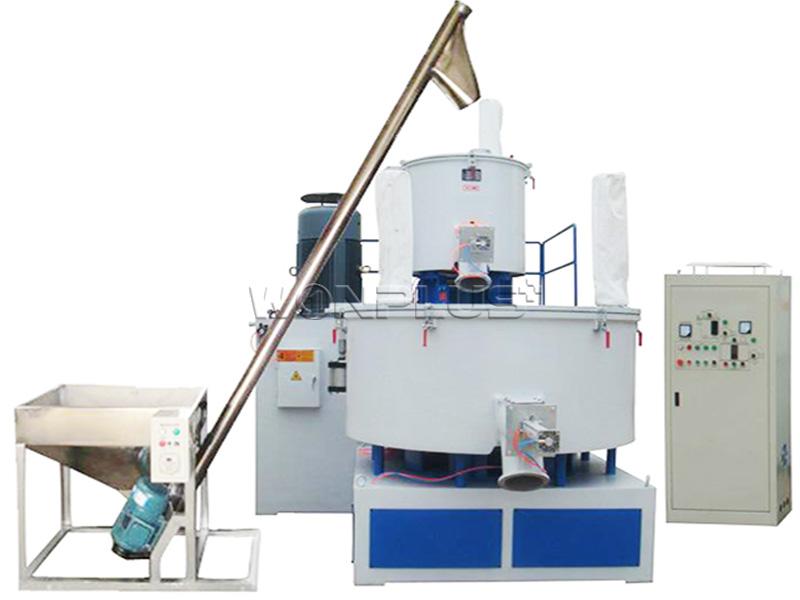

It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers. Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
Brand:
WONPLUSItem NO.:
SRLPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysFeatures:
It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers.
The cover adopts double seals. The cover of the hot mixer could be opened pneumatically. And the cover of the cold mixer could be opened both pneumatically and manually.
The electric control system is controlled by imported meters and controlling components, which realize automatic control.
It is equipped with pulse dust remove device.
The blade has passed the static-dynamic balancing test.
Feeder could be chose according to the customers’ requirement.
Technical parameters:
|
Model |
Max volume L |
Effective volume L |
Motor KW |
Blade speed R/MIN |
Heating type |
Mixed period min/batch |
Out dimension L*W*H mm |
weight KG |
|
SRL-100/200 |
100/200 |
75/130 |
14/22/7.5 |
650/1300/90 |
Electric heating/ Self-friction |
6-12 |
3780*1870*2250 |
3200 |
|
SRL-200/500 |
200/500 |
150/320 |
30/42/11 |
475/950/80 |
4580*2240*2470 |
3400 |
||
|
SRL-300/600 |
300/600 |
225/390 |
40/55/11 |
475/950/80 |
4580*2240*2470 |
4200 |
||
|
SRL-500/1000 |
500/1000 |
375/650 |
55/75/15 |
430/860/60 |
4600*2200*2900 |
5800 |
||
|
SRL-800/1600 |
800/1600 |
600/1050 |
110/30 |
0-740/740/50 |
4850*2800*3300 |
6500 |
||
|
SRL-800/2500 |
800/2500 |
600/1600 |
110/22 |
0-740/740/50 |
4850*2800*330 |
7000 |
