Oneplus company's main product Conical twin screw extruder is a kind of high efficiency mixing and extruding equipment. The machine has the characteristics of low shear rate, material is not easy to decompose, plasticizing and mixing evenly, stable quality, high output, wide application range, long service life and so on. With all kinds of moulds and auxiliary machine production lines produced by our company, we can directly make PVC powder into pipes, plates, profiles and other plastic products with different sections.

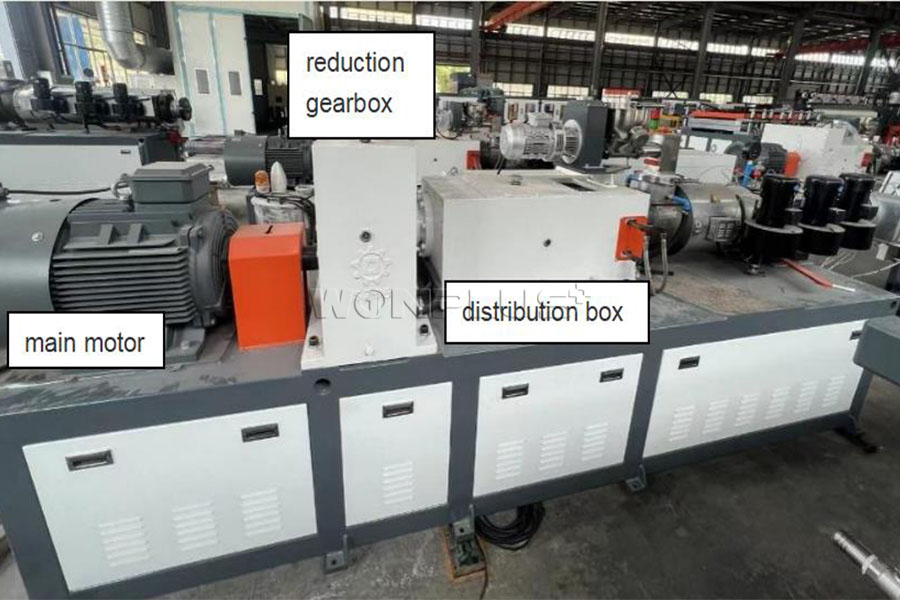

The whole extruder part includes main motor, gearbox, feed port, twin screw mixing area. The effective length of the twin screw is divided into three sections (This part of the temperature control needs to be rigorous) :

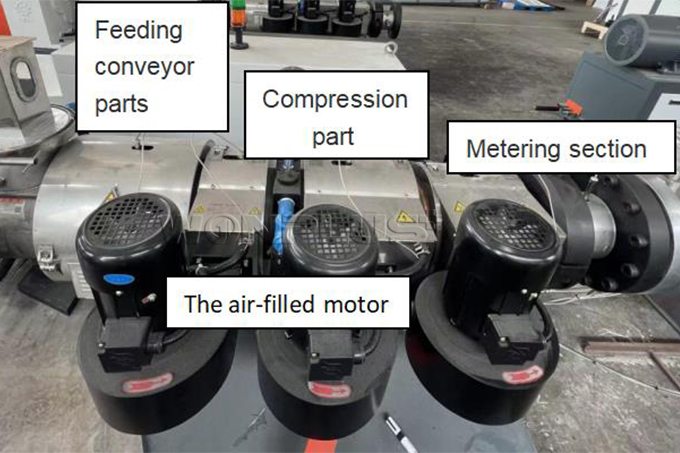

 Conveying section : materials should not be plasticized here, and should be preheated and compacted.

 Compression section : at this time the volume of the spiral groove from large to small, temperature to reach the degree of plasticization.

 Measuring section : the plasticizing temperature of the material is maintained.

In addition, each part of the extruder is equipped with different cooling systems, including oil cooling, air cooling, and water cooling, due to the need for adequate temperature control. The control of the entire system is easily controlled through various buttons on the instrument panel. The microcontroller on each display screen of the main control instrument panel can precisely control the temperature value of each area. The instrument panel can set temperature thresholds, including oil coolers, air coolers, and rear sections. The temperature control of each mold and other auxiliary equipment.

Kunshan Oneplus Machinery Co., Ltd. is a professional manufacturer of plastic machinery and equipment in China. WONPLUS PVC pipe extruder has high output, stable quality and considerate service. It is exported to all over the world and is well received by customers.
