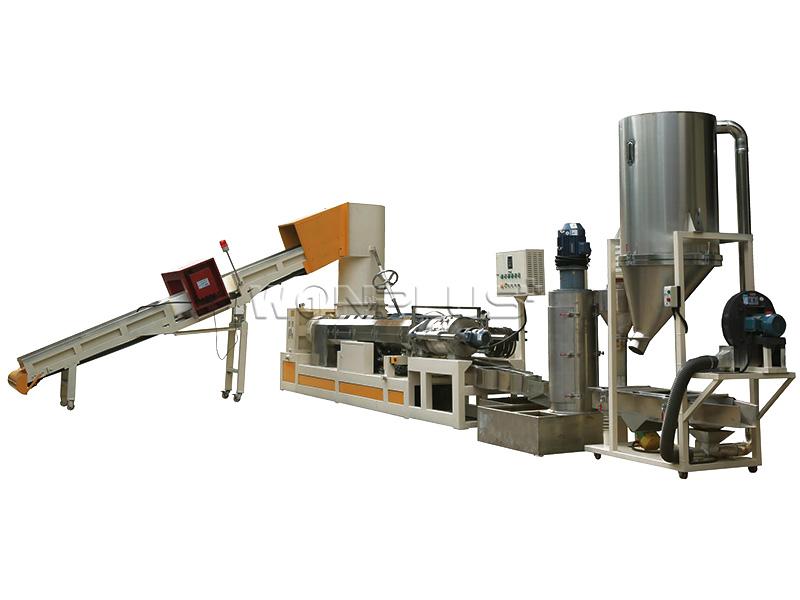

PP,PE granulation production line for different shapes of materials, different feeding methods, different properties of materials, design the corresponding screw structure.
Brand:
WONPLUSItem NO.:
SJ+ZLFPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
60-75 daysEquipment composition:
Single Screw Extruder + water ring cutter + water tank + centrifual dehydrator
Feature:
● High output and stable running performance.
● PLC automatic control system and HMI touch screen control panel.
● Automatic mould temperature control system.
● After one or more screen changer, the raw material slag can be removed better.
● the appearance of the particles can be greatly improved by the water ring granulator
● The air drying system greatly reduces the water content of the final particles.
Technical Parameters:
|
Single Screw Extruder with Feeder |
|
Type : SJ120/38 Motor ：355KW |
|
Water ring granulation die suitable |
|
Motor ：3kw Blade ：4pcs Water Pump ：4kw |
|
Vibrating Device |
|
Motor ：0.2kw*2 Dia ：2.5mm |
|
Centrifual Dehydrator |
|
Motor ：7.5kw |
Related Tags :
PVC two outlet pipe extrusion line has the model of 16-63mm,50-110mm and 90-160mm double out, which can produce Two pcs PVC pipes simultaneously. The PVC pipe is widely used to electric conduit, water discharge and so on. Two outlet PVC pipe extrusion line is a high efficient and output machine.
Parallel twin screw extruder is a kind of equipment for extruding PVC powder, PVC wood (WPC) powder, or PE wood pallets, using different kind of mould and auxiliary machine, can produce different kinds of PVC pipes, profile, panel, sheet, roofing, flooring, board and granules.
PVC sheet is widely used as various decoration, advertisement, division plate, etc.The sheet long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof.Easy installation and low transportation cost.
Pipe laser printer is widely used to print the label on plastic pipes,profile or panels, which is working together with extrusion line.
PVC hollow corrugated roof tile is widely used as factory roof, warehouse roof, agricultural market roof etc.The roofing tile has long service life. Good anti-corrosion ability and anti-impact ability. Fire proof, UV proof, noise isolation.Easy installation and low transportation cost.
PVC four outlet pipe extrusion line has the model of 16-32mm four outlet and 32-63mm four outlet, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
It is suitable for material transportation, mix, drying and color and it is the ideal choice for pipe or profile manufacturers. Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
630-1200mm HDPE pipe extrusion line is a large size pipe production line.High capacity extruder with stable die and downstream, together with Gravimetric system and Siemens PLC, the pipe production efficiency is super high. More and more big size pipes are widely used in public project, for water supply&discharge, gas transport, etc.
